Product Features

 Supports 8.0Gb/s to 11.1Gb/s bit rates
 Hot-pluggable XFP footprint, Built-in digital diagnos
 Maximum link length of 40km with SMF
 1310nm DFB laser and PIN photodiode
 XFP MSA package with duplex LC connector
 No reference clock required
 Single +3.3V power supply
 Power dissipation <1.5W
 Compatible with RoHS
 Temperature range:0 to +70°C

Applications
 SONET OC-192&SDH STM-64 at 9.953Gbps
 10GBASE-LR/LW 10G Ethernet
 1200-SM-LL-L 10G Fibre Channel
 10GE over G.709 at 11.09Gbps
 OC192 over FEC at 10.709Gbps
 Other optical links, up to 11.1Gbps

Description

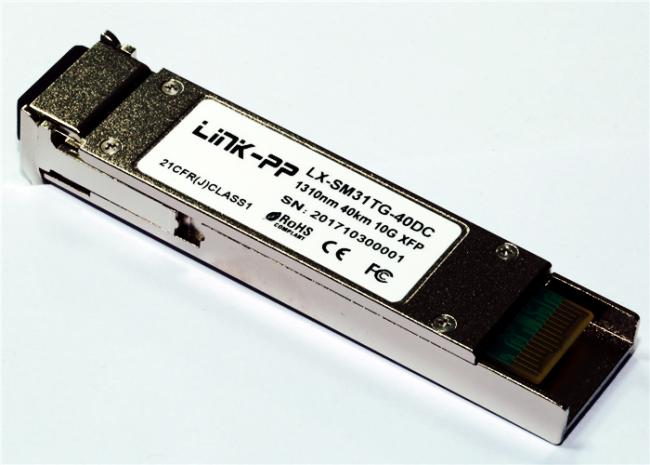

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source
Agreement (MSA), supporting data-rate of 8.0~11.1Gbps, and transmission distance up to 40km on
SMF.
The transceiver module comprises a transmitter with 1310nm DFB laser and a receiver with a PIN
photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum
heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE
systems.
