ARJ11B-MASAO-LU2 10/100 Base-T 1 Port RJ45 Modular Jack with Shielded
Price:
$0.05-$1.28
MOQ:
50/500/1000/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

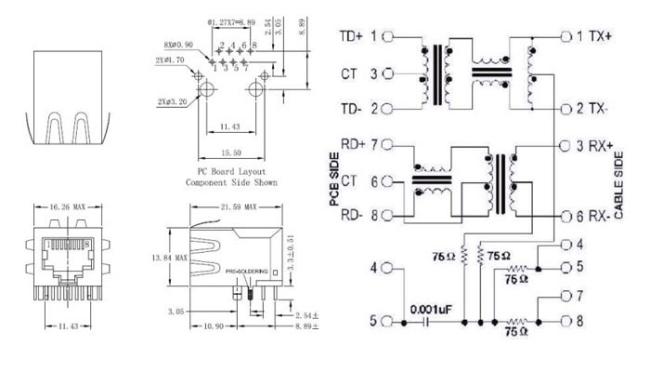

ARJ11B-MASAO-LU2 10/100 Base-T 1 Port RJ45 Modular Jack with Shielded
| Part Number |
Return Loss (dBmin @ 100Ω±15Ω) |
Crosstalk (dB min) |
Common Mode Rejection (dB min) |
Hipot 1- 30 (Vrms) |
|||||||
| 1- 30 MHz |
40 MHz |
50 MHz |
60-80 MHz |
30 MHz |
60 MHz |
100 MHz |
30 MHz |
60 MHz |
100 MHz |
||
| ARJ11B-MASAO-LU2 | -18 | -16 | -12 | -10 | -40 | -35 | -30 | -30 | -20 | -20 | 1500 |
FEATURES:
• Excellent EMI suppression
• Meet IEEE 802.3 standards and FCC mechanical requirements
• Low Cost, RoHS Compliant Reflow-able device
APPLICATIONS:
• LAN-on-Motherboard (LOM)
• SOHO (ADSL modems), Hubs.
• Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
STANDARD SPECIFICATIONS:
• Operating Temperature: - 0°C to + 70°C
• Storage Temperature: - 40°C to +85°C
