MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector
Price:
$0.05-$1.28
MOQ:
50/500/1000/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector
Quick Details
1. Manufactured Under Strict Controls
2. 1X1 Tab-up Without LED
3. 10/100M RJ45 modular jack
4. 25.25 length RJ45 Magjack
5. meeting IEEE 802.3af/at
Description:
Description:
| LINK-PP Part Number | LPJ1014DNL |
| Designing Model | MIC24310-0101T-LF3 |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| LED Option | WITHOUT |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |

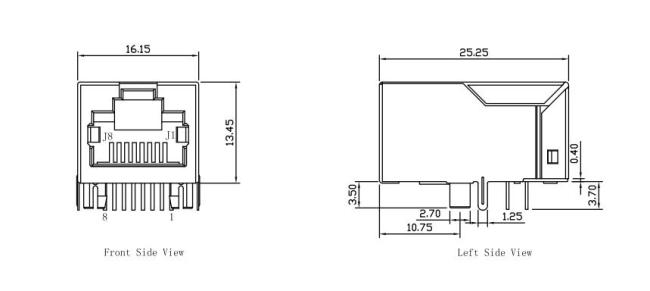

| Package Height (mm) | 13.45 |
| Package Length (mm) | 25.25 |
| Package Width (mm) | 16.15 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
1. Industrial Ethernet Switches
2. layer 2 ethernet switch
3. smart home security system
4. Magnetic Shielding
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
