85728-1006 Gigabit 2x6 Rj-45 8P8C LPJG67090A88NL 1000Base-T Ethernet Jack

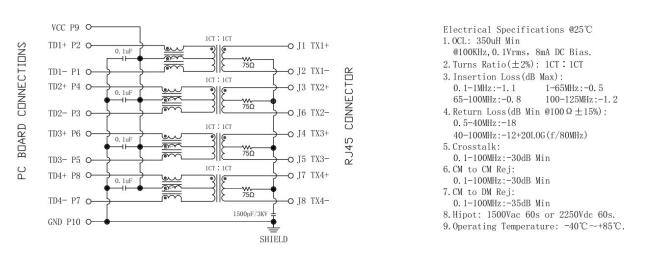

- RJ45 2x6 Tab-DOWN with internal magnetics LPJG67090A88NL
- 1000 Base-TX Interface With Rj45 Magnetics 85728-1006
- Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
- Meets IEEE 802.3 specification
- 350 µH minimum OCL with 8mA bias current
- High performance for maximum EMI suppression
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Green | 565 | 1.8~2.6V | 10μA max |
| Orange | 585 | 1.8~2.6V | 10μA max |
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
LINK-PP,there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.
Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.
