JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port
Price:
Supportive
MOQ:
200/500//1200
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port
1. Integrated magnetic connector with 10/100M Circuit RJ45 single port (1x1) connector.

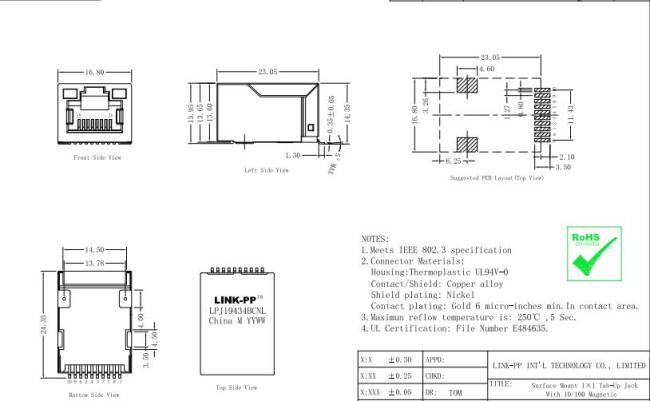

2. Surface Mount 1X1 Tab up Jack with 10/100 Magnetic JXD6-0002NL
3. Contact Area : Gold Flash
4. 1X1 RJ45 With LEDs , Meeting IEEE 802.3ab
5. Operating Temperature (°C ) : -40 - +85
6. Hipot : 1500Vrms MIN
Description
|
Part Number
|
JXD6-0002NL |
| Cross Part Number | LPJ19434BCNL |
|
Application-LAN
|
ETHERNET(NON POE) |
|
AutomDX
|
YES |
|
Bst Circuit
|
YES |
|
Configuration RX
|
T,C |
|
Configuration TX
|
T,C |
|
Contact Mating Area Plating
|
GOLD 6u"/15u"/30u" |
|
Cores Per Port
|
4 |
|
Diodes
|
NO DIODES |
|
LED Option
|
WITH LEDS |
|
Latch
|
UP |
|
Number of Ports
|
Single Port |
|
PCB
|
FR4 |
|
PCB Mount Angle
|
SIDE ENTRY |
|
PCB Retaining Post
|
T POST |
|
Pin Type
|
THT SOLDER |
|
RoHS Compliant
|
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|
Search
|
YES |
|
Shield EMI Tabs
|
WITH |
|
Speed
|
10/100 BASE-T |
|
Temperature
|
-40 TO 85°C |
|
Turns Ratio RX
|
1CT:1 |
|
Turns Ratio TX
|
1CT:1 |
Applications For Terminal User
Designed to support Network Interface Card (NIC) applications, LAN-on-Motherboard (LOM) applications and PC applications.Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
