1368458-2 Low Profile Rj45 Connector 10/100 Base-T Magjack LPJK7004SA98NL
Price:
$0.08-$1.79
MOQ:
50/500/1000/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

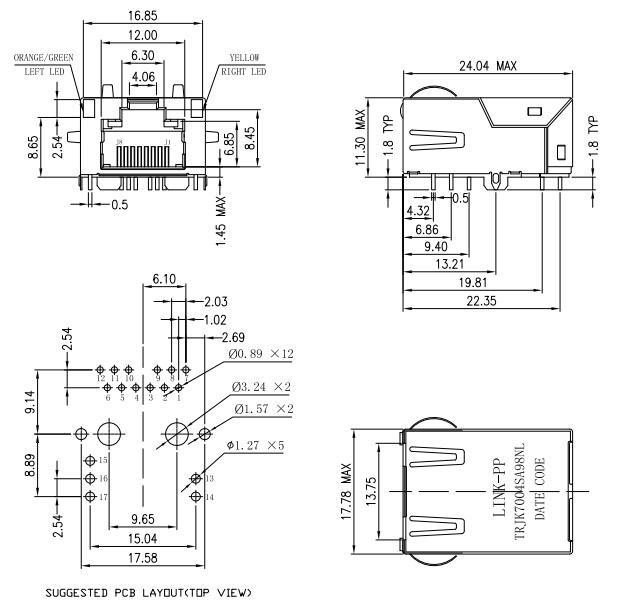

1368458-2 Low Profile Rj45 Connector 10/100 Base-T Magjack LPJK7004SA98NL
|
L8AL-1X1T-32A |
||||||||||||||||||||||||||||||||
| Trader Part Number | 1368458-2 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Made In China |
LPJK7004SA98NL |
|||||||||||||||||||||||||||||||
| Manufacturer |
LINK-PP |
|||||||||||||||||||||||||||||||
| Documents |
PDF/IGS/STEP/Cross/Price/Compatible |
|||||||||||||||||||||||||||||||
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |||||||||||||||||||||||||||||||
| Quantity Available |
2,000 PCS / Or 4 weeks |
|||||||||||||||||||||||||||||||
Part Number :
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Insertion Loss(dB MIN):
0.5-80MHz:-1.3
3.Return Loss(dB MIN):
0.5-30MHz:-18
30.1-60MHz:-18-20log
60.1-80MHz:-14
4.Crosstalk(dB MIN):
0.5-60MHz:-43
60.1-80MHz:-40
5.Common To Common Mode Rejection:
0.5-80MHz:-33
6.Hi-Pot: 1500VRMS
7.Operating Temperature;0 To 70 ℃
