G1184-B4000-A 1000 Base -T RJ45 With Integrated Magnetics LPJG17346DNL
Price:
Supportive
MOQ:
50/500/1000
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

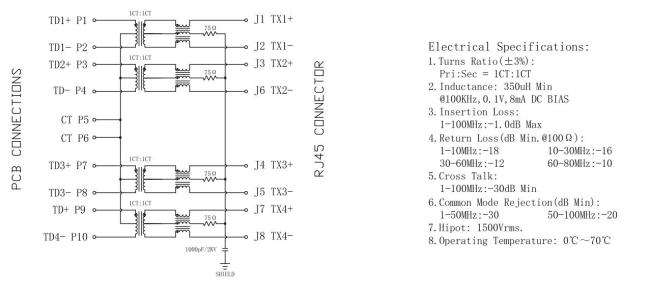

G1184-B4000-A 1000Base-T RJ45 With Integrated Magnetics LPJG17346DNL
| G1184-B4000-A 1000Base-T RJ45 With Integrated Magnetics LPJG17346DNL | |
| LINK-PP Part Number | LPJG17346DNL |
| Part Number | G1184-B4000-A |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | WITHOUT LED |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.530 |
| Package Height (mm) | 13.45 |
| Package Length (Inches) | 0.994 |
| Package Length (mm) | 25.25 |
| Package Width (Inches) | 0.636 |
| Package Width (mm) | 16.15 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
