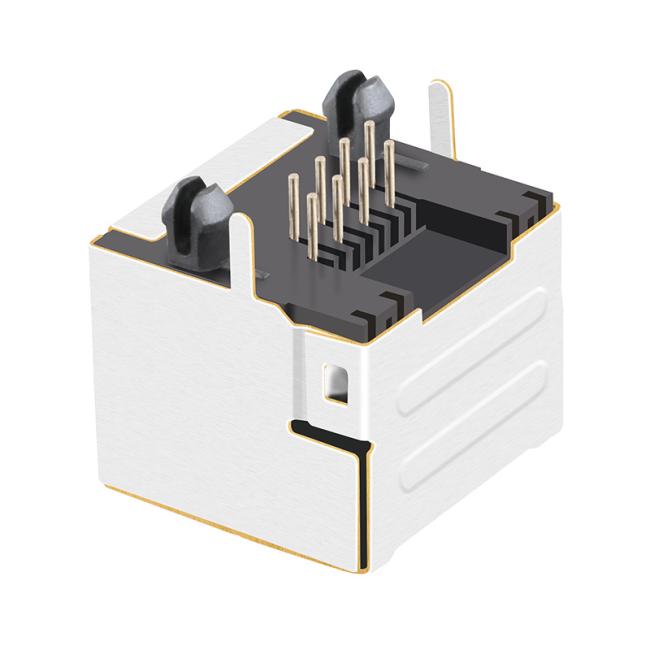

1-406541-5 / 1-406541-8 Single Port RJ45 Female Connector 8P8C LPJE101DNL
Features of 1-406541-5 / 1-406541-8 8P8C RJ45 Connector:
|
Category |
Attribute |
Value |
|---|---|---|
|
Basic Information |
TE Part Number |
1-406541-5/1-406541-8 |
|
|
Product Type |
RJ45 Connector Assembly |
|
|
LAN Category |
Cat 5 |
|
Structural Features |
Port Configuration |
Single Port |
|
|
Port Matrix Configuration |
1 x 1 |
|
|
Positions / Contacts |
8P8C (8 Position / 8 Contact) |
|
|
Shielded |
Yes |
|
|
Magnetics |
Without Magnetics |
|
|
LED Indicator |
Without LED |
|
|
Profile |
Standard Profile |
|
|
Orientation |
Inverted - Latch Up |
|
Body Features |
Housing Color |
Black |
|
|
Housing Material |
High-Temperature Thermoplastic |
|
|
Flammability Rating |
UL 94 V-0 |
|
Contact Features |
Contact Material |
Phosphor Bronze |
|
|
Contact Mating Area Plating |
Gold |
|
Electrical Characteristics |
Current Rating |
1.5 A / 0.2 A |
|
Termination Features |
Termination Method |
Through Hole - Solder |
|
Mechanical Attachment |
Mounting Type |
PCB Mount |
|
|
Mounting Angle |
Right Angle |
|
Dimensions |
Connector Height |
13.34 mm (.525 in) |
|
|
Recommended PCB Thickness |
1.57 mm (.062 in) |
|
|
Pin Pitch |
1.02 mm (.04 in) |
|
Usage Conditions |
Operating Temperature Range |
-45°C to +85°C |
|
Packaging Information |
Packaging Method |
Box & Tray |
|
Compliance |
RoHS/ELV Compliant |
Yes |

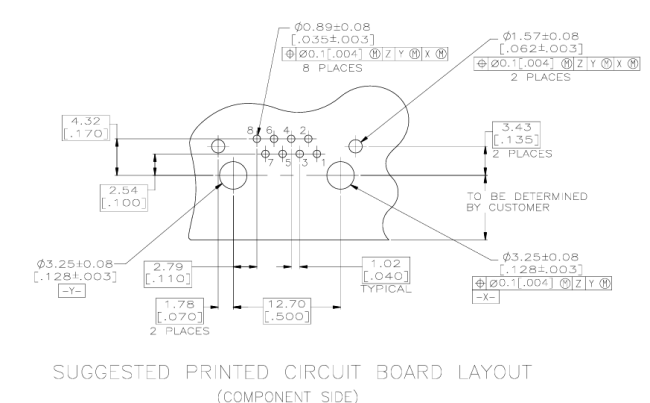

1-406541-5 / 1-406541-8 Drawing-Recommended PCB Layout:

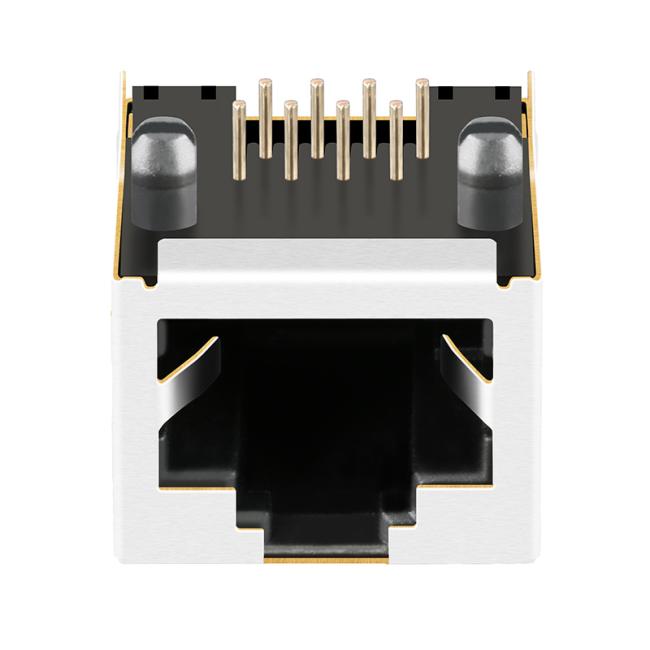

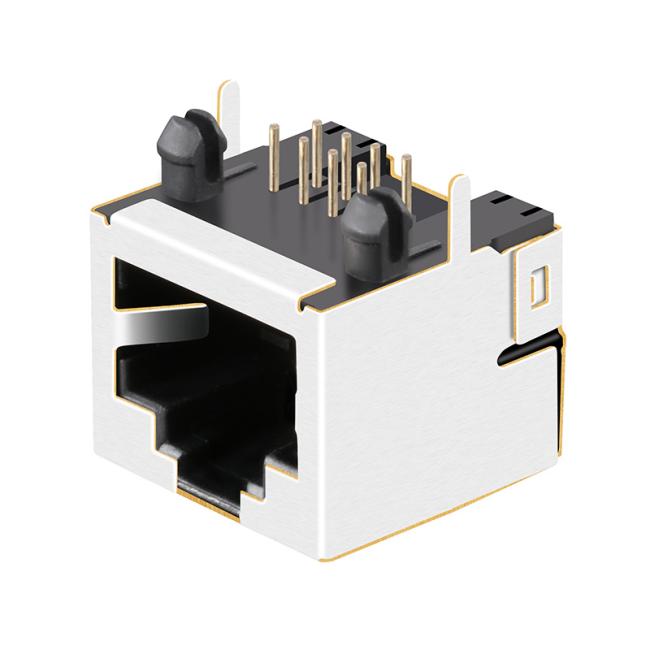

1x1 RJ45 Connector without Magnetics Details:
