FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL
- Designed for Ethernet 1000 BASE-T, full Quad port applications.
- LINK-PP LP82458NL Magnetic Transformer
- Cross G1PM109N LF 4x10/100/1000Base-T Ethernet
- Compliant with IEEE 802.3ab standard for 1000 BASE-T.
- Comply with RoHS requirements-whole part No Cd, No Hg,No Cr6+, No PBB and PBDE and No Pb on external pins.
- Operating temperature range: 0℃ to +70℃.
| Quad Port, 100/1000 BASE-T Ethernet Transformer Modules, THT,Rohs | |
| LINK-PP Part Number | LP82458PNL |
| Part Number | FM-1178LLF |
| Speed | 100/1000BASE-T |
| Number of Ports | QUAD |
| Application - LAN | ETHERNET (NON PoE) |
| Package | THT |
| Temperature | 0 TO + 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |

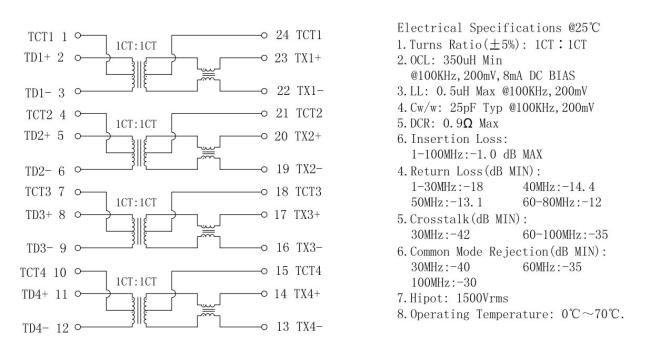

| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 24 |
| Package Height (Inches) | 0.472 |
| Package Height (mm) | 12.00 |
| Package Length (Inches) | 0.610 |
| Package Length (mm) | 15.50 |
| Package Width (Inches) | 0.433 |
| Package Width (mm) | 11.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
