A00-108-622-450 Shielded RJ45 Top Entry 8P8C Modular Jack 30u Gold
A00-108-622-450 is a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, latch-down design, 180° right-angle orientation, THT solder mounting, and 30 microinches of gold plating.
A00-108-622-450 Vertical RJ45 Jack Introduction
The A00-108-622-450 Shielded RJ45 Top Entry P.C.B Modular Jack is a compact 8P8C Ethernet connector designed for PCB-mounted network applications that need a top-entry, 1x1 port, latch-down, 180° right-angle modular jack format. This version features 30 microinches of gold plating on the contact mating area and uses THT solder mounting for reliable board assembly.
Why Choose the A00-108-622-450 RJ45 Modular Jack?
If you are searching for an A00-108-622-450 RJ45 connector, this part is built for applications that need a shielded RJ45 top entry modular jack with a standard 8P8C interface, compact footprint, and stable PCB integration. The datasheet also identifies this part as part of a family with different gold-plating options, including 15, 30, and 50 microinches of gold, helping designers choose the right level of contact finish for their application.
The A00-108-622-450 shielded RJ45 modular jack is engineered for Ethernet connectivity where dependable board-level performance and a clean top-entry connector layout are required. Its 180° right-angle configuration and through-hole solder termination make it suitable for many networking, industrial, and embedded PCB designs that use standard RJ45 interfaces.
Key Features
- Part Number: A00-108-622-450
- Product Type: Shielded RJ45 top entry P.C.B modular jack
- Positions / Contacts: 8P8C (RJ45 / Ethernet)
- Ports: 1x1 port
- Orientation: 180° angle, right-angle style
- Latch Style: Latch down
- Mounting Type: THT solder PCB mount
- Gold Plating: 30 microinches of gold / 30u" contact mating area plating
- Turns Ratio: RX/TX 1CT:1CT
- LED Option: Without LED option
- Shield EMI Tabs: Without shield EMI tabs on this version
Specifications of A00-108-622-450 RJ45 without Magnetics
| Item | Specification |
|---|---|
| Part Number | A00-108-622-450 |
| Product Name | Shielded RJ45 Top Entry P.C.B Modular Jack |
| Interface | RJ45 / Ethernet |
| Positions / Contacts | 8P8C |
| Number of Ports | 1x1 |
| Orientation | 180° angle (right angle) |
| Mounting Type | THT solder |
| Latch | Latch down |
| Contact Plating | Gold 30 microinches (30u") |
| LED Option | Without |
| Shield EMI Tabs | Without |
| Turns Ratio RX/TX | 1CT:1CT |

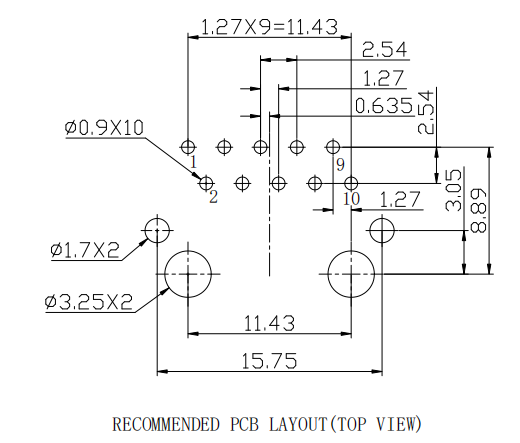

A00-108-622-450 Datasheet - Recommended PCB Layout
Design and Integration Notes
According to the datasheet drawing, the connector family includes a recommended PCB layout and mechanical dimensions for board integration, which helps simplify footprint planning during PCB design. The product is shown as a top-entry modular jack with a shielded structure, supporting clean alignment and practical assembly for board-level Ethernet ports.
FAQ About A00-108-622-450 Top Entry 8P8C Modular Jack
1. What is the A00-108-622-450?
The A00-108-622-450 is a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, 180° right-angle orientation, and THT solder mounting.
2. Does the A00-108-622-450 use gold plating?
Yes. This version uses 30 microinches of gold on the contact mating area, listed in the datasheet as 30u" gold plating.
3. Is this connector suitable for Ethernet?
Yes. The part uses the standard RJ45 / 8P8C interface, which is widely used for Ethernet applications.
4. What is the mounting style?
The connector uses THT solder mounting for PCB integration.
If your project needs a shielded RJ45 top entry P.C.B modular jack with a 1x1 port, 8P8C interface, latch-down design, 180° right-angle orientation, and 30u" gold plating, the A00-108-622-450 is a focused option for PCB-based Ethernet connectivity.
