1888617-1 Single Port QSFP+ Cage with Internal/External EMI Springs
The TE 1888617-1 QSFP+ Cage is a single-port, through-bezel cage assembly designed for QSFP+ pluggable I/O applications. It is intended for use with QSFP MSA-compatible transceivers and uses a through-hole press-fit termination method for PCB attachment. The cage features internal/external EMI springs, a nickel silver cage body, and heat sink compatibility, making it suitable for high-density, signal-focused networking designs.
Technical Specifications of 1888617-1 QSFP+ Cage
| Feature | Specification |
|---|---|
| Port Configuration | 1 Port (1 × 1 Matrix) |
| Termination Method | Through Hole - Press-Fit |
| Cage Material | Nickel Silver |
| EMI Containment | Internal/External EMI Springs |
| PCB Contact Plating | Tin |
| Termination Post Length | 2.2 mm [.086 in] |
| Flammability Rating | UL 94V-0 |
| Heat Sink Compatible | Yes |
Why Choose TE 1888617-1 QSFP+ Cage Assembly?
If you are looking for a reliable QSFP+ cage for compact host board designs, this part offers a clean fit for 1 x 1 port matrix implementations and supports SFP+ stacked belly-to-belly applications as listed in the drawing/spec data. The design also includes EMI containment features and a UL 94V-0 flammability rating, helping it align with demanding system-level hardware requirements.
Key Product Features
- Pluggable I/O Product Type: Cage
- Form Factor: QSFP+
- Cage Type: Single
- Port Configuration: 1 port, 1 x 1 matrix
- EMI Containment: Internal/External EMI springs
- Termination Method: Through Hole - Press-Fit
- Heat Sink Compatible: Yes
- Cage Material: Nickel Silver
- PCB Contact Termination Plating: Tin
- Flammability Rating: UL 94V-0
- Packaging: Box & Tray

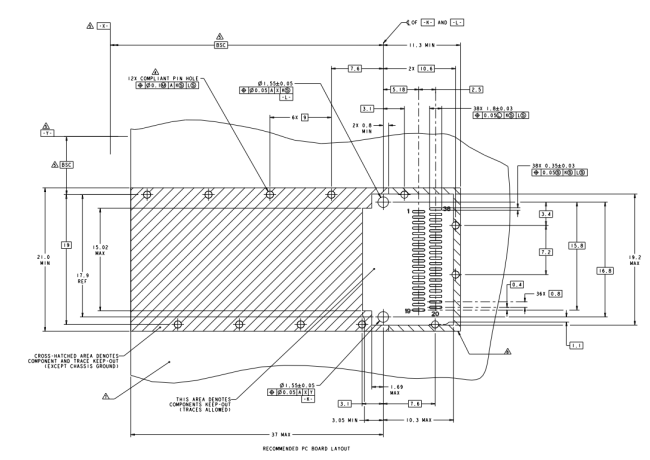

1888617-1 QSFP+ Cage Datasheet - Recommanded PCB Layout
1888617-1 QSFP+ Cage Notes
For layout planning, TE specifies a through-hole press-fit mounting approach and provides PCB-related guidance in the customer drawing. The drawing also identifies datum A as the top surface of the host board and notes that the product is intended for specific host-board mechanical constraints, including the minimum board thickness requirements mentioned above.
To ensure optimal performance and assembly, please adhere to the following technical guidelines:
- PCB Requirements: The recommended minimum board thickness is 1.45 mm for single-sided applications and 2.2 mm for double-sided (belly-to-belly) applications.
- Compatibility: This cage is designed to mate with all QSFP MSA compatible transceivers.
- Spring Finishing: The EMI springs feature a finish of 0.8 µm minimum Tin over 0.8 µm minimum Nickel.
- Trace Clearance: Surface traces are permitted within the specified area, provided they do not contact the cage standoffs.
- Identification: Each unit includes a 2D barcode and date code (YYWWD) for streamlined inventory tracking and quality control.
Typical Applications
The TE 1888617-1 QSFP+ Cage is a strong fit for:
- High-speed networking equipment
- Switches and routers
- QSFP+ port designs
- Dense I/O panels
- Signal interconnect platforms requiring EMI control
FAQ About 1888617-1 QSFP+ Cage
Q1. Is the TE 1888617-1 designed for QSFP+ modules?
Yes. The drawing identifies it as a QSFP+ pluggable I/O cage and states that it mates with QSFP MSA-compatible transceivers.
Q2. What mounting method does this cage use?
It uses through-hole press-fit termination to the PCB.
Q3. Does the cage include EMI protection?
Yes. The part includes internal/external EMI springs for EMI containment.
Q4. What PCB thickness is recommended?
TE specifies 1.45 mm minimum for single-sided boards and 2.2 mm for double-sided boards.
Q5. Is it heat sink compatible?
Yes, the product is listed as heat sink compatible.
