G4867CE Dual Port 2.5GBASE-T 48pins LAN Transformer with 1A PoE
G4867CE dual-port 2.5GBASE-T LAN magnetics module with PoE support, SMD 48-pin package, wide temperature range, ideal for 2.5G Ethernet devices.
G4867CE Dual-Port 2.5GBASE-T LAN Magnetics Module
The G4867CE is a high-performance dual-port 2.5G Ethernet LAN transformer module designed for 2.5GBASE-T applications with PoE support.
Featuring a 48-pin SMD package, wide operating temperature range, and excellent signal integrity, G4867CE is ideal for next-generation 2.5G network equipment.
Key Features
- Supports 2.5GBASE-T Ethernet data rates
- Dual-port integrated LAN magnetics design
- PoE capable, suitable for powered Ethernet applications
- 48-pin SMD package for automated assembly
- High isolation voltage for enhanced safety
- Wide operating temperature range (industrial grade option)
- Optimized for low insertion loss and excellent return loss
G4867CE 2.5G LAN Magnetics Specifications
| Parameter | Specification |
|---|---|
| Part Number | G4867CE |
| Product Type | LAN Magnetics / Ethernet Transformer Module |
| Ethernet Standard | IEEE 802.3 2.5GBASE-T |
| Data Rate | Up to 2.5 Gbps |
| Port Configuration | Dual Port (2× Ethernet) |
| Turns Ratio (Tx / Rx) | 1CT : 1CT |
| PoE Support | Yes |
| PoE Current Rating | Up to 1 A (design dependent) |
| Isolation Voltage (Hi-Pot) | 1500 VAC (typ.) |
| Common-Mode Rejection | High DCMR / CCMR |
| Insertion Loss | Optimized for 2.5G Ethernet |
| Return Loss | Meets 2.5GBASE-T requirements |
| Crosstalk | Low crosstalk design |
| Package Type | SMD (Surface Mount) |
| Pin Count | 48 Pins |
| Number of Ports | 2 |
| Operating Temperature | –40 °C to +85 °C |
| Soldering Process | Lead-free, Reflow compatible |
| PCB Mounting | Surface Mount |
| Typical Applications | 2.5G Switches, Wi-Fi 6/6E APs, PoE Equipment, Gateways |

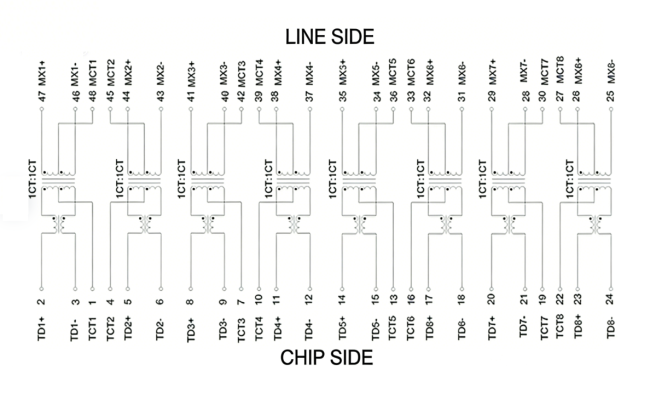

G4867CE Datasheet
Why Choose G4867CE for 2.5G Ethernet Designs?
1. Optimized for 2.5G Performance
G4867CE is specifically engineered for 2.5GBASE-T signal integrity, ensuring stable transmission, reduced EMI, and reliable PoE power delivery.
2. Cost-Effective Dual-Port Integration
By integrating two Ethernet ports into a single magnetic module, G4867CE helps designers simplify layouts, lower component count, and improve manufacturing efficiency.
3. Suitable for PoE Applications
With robust isolation and current handling capability, G4867CE supports PoE network architectures commonly used in modern access networks.
