TG110-AE050N5LF AEC-Q200 10/100BASE-TX Automotive LAN Transformer
Why Choose TG110-AE050N5LF?
If your design needs a compact, automotive-grade Ethernet magnetics solution for 10/100BASE-TX links, TG110-AE050N5LF offers the right mix of size, compliance, and electrical performance. The part is specified as AEC-Q200 qualified, UL/EN60950 recognized, and 100% compliance tested, with patented open frame construction for robust integration in high-reliability designs.
Key Features
- Designed for automotive infotainment applications.
- AEC-Q200 qualified for automotive use.
- UL/EN60950 recognized.
- 100% compliance testing for consistent quality control.
- 1500Vrms hi-pot isolation capability.
- Patented open frame construction for a compact and reliable design approach.
TG110-AE050N5LF LAN Transformer Technical Specifications
| Parameter | Specification |
|---|---|
| Product Number | TG110-AE050N5LF |
| Type | LAN Isolation Transformer |
| Mounting Type | Surface Mount (SMD) |
| Qualification | AEC-Q200 |
| Grade | Automotive |
| Application | Single Port 10/100BASE-TX Automotive Ethernet |
| Number of Channels | Single |
| Data Rate | 10/100 Mbps |
| Turns Ratio | 1CT:1CT |
| OCL (Min) | 350 µH |
| Cw/w (Max) | 35 pF |
| DCR (Max) | 0.9 Ω |
| Hi-Pot Isolation | 1500 Vrms |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package / Case | SMD-16 |
| Length | 12.70 mm |
| Width | 7.11 mm |
| Height | 6.35 mm |
| Compliance | UL/EN60950 Recognized, 100% Compliance Tested |
| Construction | Patented Open Frame Construction |

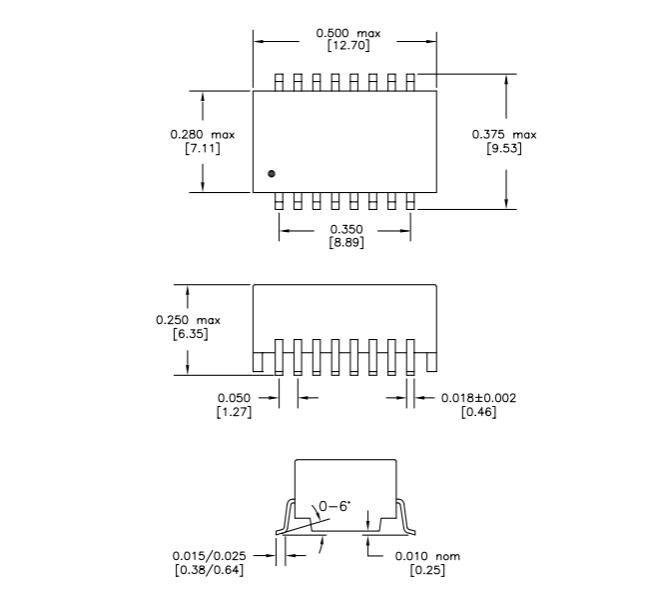

TG110-AE050N5LF Ethernet Transformers Datasheet - Dimension
Mechanical Dimensions (SMD-16)
Precision engineering allows the TG110-AE050N5LF to maintain a small profile without sacrificing performance:
- Length: 12.70 mm
- Width: 7.11 mm
- Height: 6.35 mm
Applications of Automotive LAN Transformer
The TG110-AE050N5LF is specifically designed for high-reliability sectors, including:
- Automotive Infotainment: Head units, rear-seat entertainment, and digital instrument clusters.
- In-Vehicle Networking (IVN): Automotive Ethernet gateways and switches.
- ADAS Modules: Connectivity for sensors, cameras, and LIDAR systems.
- Industrial Automation: Harsh environment Ethernet communication requiring AEC-Q200 level durability.
FAQ About TG110-AE050N5LF SMD-16 LAN Transformer
For engineers and sourcing teams, the TG110-AE050N5LF stands out because it combines automotive qualification with practical Ethernet transformer performance. Its AEC-Q200 qualification, wide temperature range, and 1500Vrms isolation help support durable system-level designs in automotive environments.
Q1. What is the TG110-AE050N5LF used for?
It is a single-port 10/100BASE-TX automotive LAN transformer designed for automotive infotainment and related Ethernet isolation applications.
Q2. Is TG110-AE050N5LF automotive qualified?
Yes. It is listed as AEC-Q200 and automotive grade.
Q3. What is the operating temperature range?
The specified operating range is -40°C to +85°C.
Q4. What is the hi-pot rating?
The transformer is rated at 1500Vrms hi-pot.
Q5. What package does it use?
It uses an SMD-16 package with overall dimensions of 12.70 mm × 7.11 mm × 6.35 mm.
