TG110-AEX50N5LF 10/100 Base-T Ethernet Transformer SMT 16PIN
TG110-AEX50N5LF Automotive Ethernet Transformer Overview
The TG110-AEX50N5LF Ethernet Transformer is a high-reliability AEC-Q200 qualified single-port 10/100BASE-T LAN isolation transformer specifically developed for harsh automotive communication environments. Designed by HALO Electronics for in-vehicle infotainment and Ethernet-based ECU networking, this SMD transformer provides stable signal isolation, superior common-mode noise suppression, and long-term thermal durability under automotive Grade 1 temperature conditions.
With a 350µH minimum OCL, 1CT:1CT transmit/receive turns ratio, 1500Vrms Hi-Pot isolation, and an extended -40°C to +125°C operating range, TG110-AEX50N5LF is widely used in:
- Automotive infotainment head units
- ADAS communication modules
- Ethernet gateway ECUs
- Rear-seat entertainment systems
- Telematics control units (TCU)
- Industrial harsh-environment 10/100 Ethernet nodes
For engineers seeking a qualified alternative to TG110-AEX50N5LF, LINK-PP offers fully compatible automotive Ethernet magnetic transformer solutions LP1188NL with equivalent electrical and mechanical performance.
TG110-AEX50N5LF Ethernet Transformer Key Specifications
| Parameter | Specification |
|---|---|
| Part Number | TG110-AEX50N5LF |
| Transformer Type | LAN 10/100 Base-T Automotive Ethernet Transformer |
| Data Rate | 10/100BASE-TX |
| Turns Ratio | 1CT:1CT Transmitter / 1CT:1CT Receiver |
| OCL (Min) | 350µH |
| Interwinding Capacitance Cw/w (Max) | 35pF |
| DCR (Max) | 1.0Ω |
| Isolation Voltage | 1500Vrms Hi-Pot |
| Mounting Type | Surface Mount |
| Package Size | 12.70mm × 7.11mm |
| Height Max | 6.35mm |
| Operating Temperature | -40°C to +125°C |
| Qualification | AEC-Q200 |
| Compliance | UL/EN60950 Recognized |

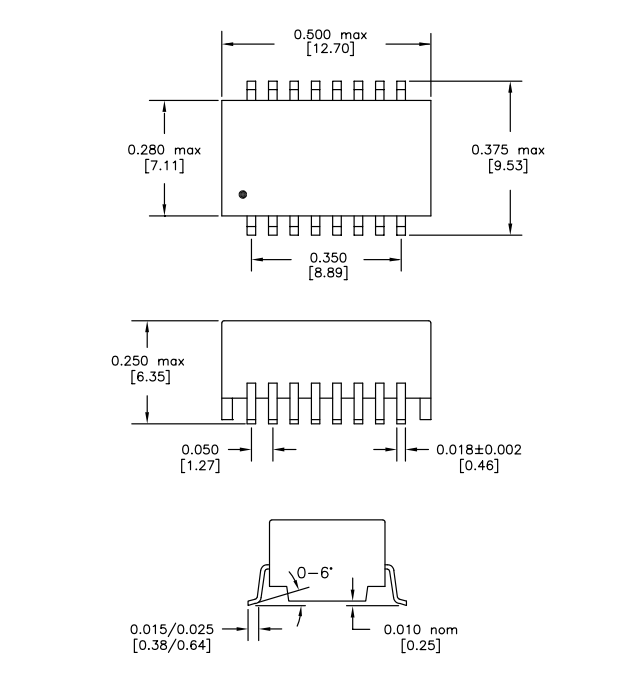

TG110-AEX50N5LF SMT Transformer Datasheet - Dimension
Applications of TG110-AE050N5LF 10/100 Base-T LAN Transformer
TG110-AEX50N5LF is engineered for robust 10/100 Ethernet communication isolation in:
- Automotive Infotainment Systems
- In-Vehicle Networking (IVN)
- ADAS Sensor Connectivity
- Industrial Ethernet in High-Temperature Environments
TG110-AEX50N5LF Equivalent Part LP1188NL from LINK-PP
LINK-PP provides automotive Ethernet magnetic transformer alternatives LP1188NL designed for customers who need:
- BOM cost reduction,
- stable long-term supply,
- PPAP/automotive project support,
- or HALO replacement sourcing.
Our equivalent solutions provide:
- matched 10/100BASE-T electrical parameters,
- 1500Vrms isolation protection,
- AEC-Q200 grade manufacturing process,
- SMT compatible package dimensions,
- and engineering sample support for validation.
Why choose LINK-PP as your automotive Ethernet magnetics supplier?
- Automotive communication magnetic component specialist
- OEM/ODM customization available
- Fast sampling for validation projects
- Bulk production support
- Stable global supply chain
- Professional magnetic parameter matching service
