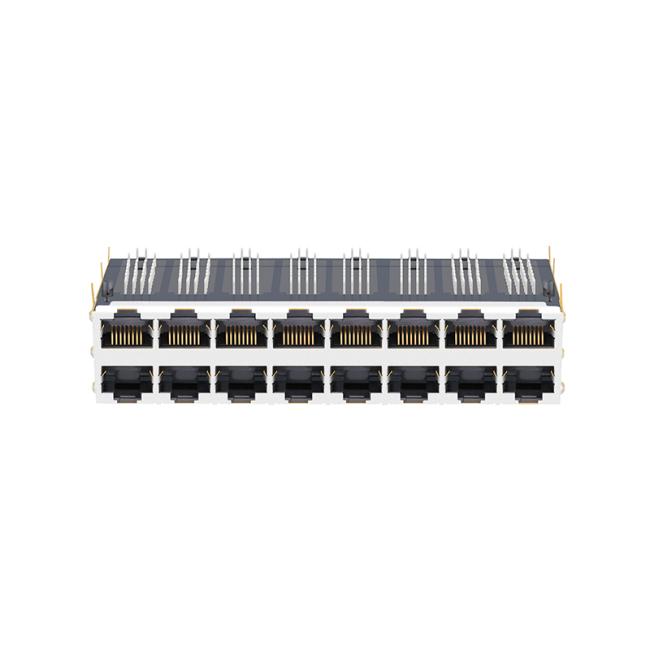

JT5-2853NL Side Entry Magnetic RJ45 Jack Lead Free 2x8 With Integrated Magnetics
JT5-2853NL Specifications :
• Meets all IEEE 802.3 10/100Base-T thru 10GBase-T electrical requirements including RL, IL, Hi-pot and Common Mode parameters
• 100% hi-pot tested in production
• Comes with many different LED color combinations and options
• 50 micro-inches of gold plated contacts as required by the TIA 1096/FCC 47, Part 68.
• Lead-free wave-solder compatible, with some IR reflow compatible designs
• UL recognized • RoHS 6/6 compliant
| Part Number | JT5-2853NL |
| Part Status | Active |
| Speed | 10G Base-T |
| Number of Ports | 2x8 Port |
| Application - LAN | Ethernet(NoN PoE) |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| Temperature | 0℃ TO 70℃ |
| Latch | Both |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Cores Per Port | 8 |
| LED Option | LIGHT PIPES |
| Package Height (mm) | 25.59 |
| Package Length (mm) | 41.20 |
| Package Width (mm) | 117.70 |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
10G Base-T JT5-2853NL 2x8 Port Side Entry Pcb RJ45 Jacks Package:
10G Base-T JT5-2853NL 2x8 Port Side Entry Pcb RJ45 Jacks With Integrated Magnetics:
