JXD0-0012NL 100 BASE-T POE 15W 1X1 Port RJ45 MagJack Tab DOWN With GREEN/YELLOW Led
Price:
OEM Price
MOQ:
50/500/1000
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
JXD0-0012NL 100 BASE-T POE 15W 1X1 Port RJ45 MagJack Tab DOWN With GREEN/YELLOW Led
| LINK-PP Part Number | LPJxxxxxx |
| Part Number | JXD0-0012NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| LATCH | Tab Down |
| SPEED | 100BASE-T |
| POE RATING | POE 15W |
| LED Option | GREEN/YELLOW |
| Number of Ports | 1X1 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40°C ~85°C |
| CONTACT MATING AREA PLATING | Gold 50 U" |
| PACKAGE HEIGHT MM | 13.63 |
| PACKAGE LENGTH MM | 21.35 |
| PACKAGE WIDTH MM | 15.90 |

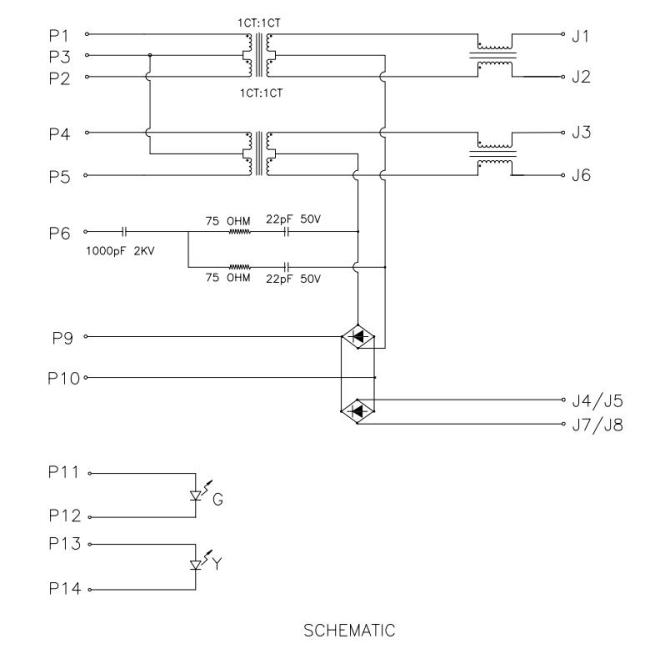

JXD0-0012NL 1X1 Port RJ45 Connector Electrical Schematic:

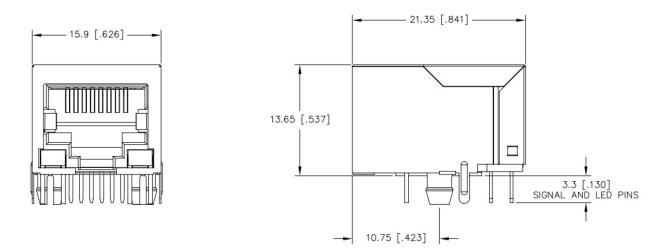

JXD0-0012NL Tab DOWN 100 BASE-T POE 15W 1X1 Port RJ45 MagJack Mechanical Specification:
JXD0-0012NL Description:
1.JXD0-0012NL 1X1 Port Rj45 magjack
1.JXD0-0012NL 1X1 Port Rj45 magjack
2.JXD0-0012NL100 BASE-T RJ45 Female Connector
3.JXD0-0012NL Tab DOWN 100 BASE-T RJ45 Jack
4.JXD0-0012NL POE RJ45 Connector With led
4.JXD0-0012NL POE RJ45 Connector With led
JXD0-0012NL RJ45 Jack Similar Part Number :
| JXT7-1140NL | JXD2 9015NLT | JXD2-9001NLT |
| JXD0-0012NL | JT4-1109HL | JT4-1120HL |
