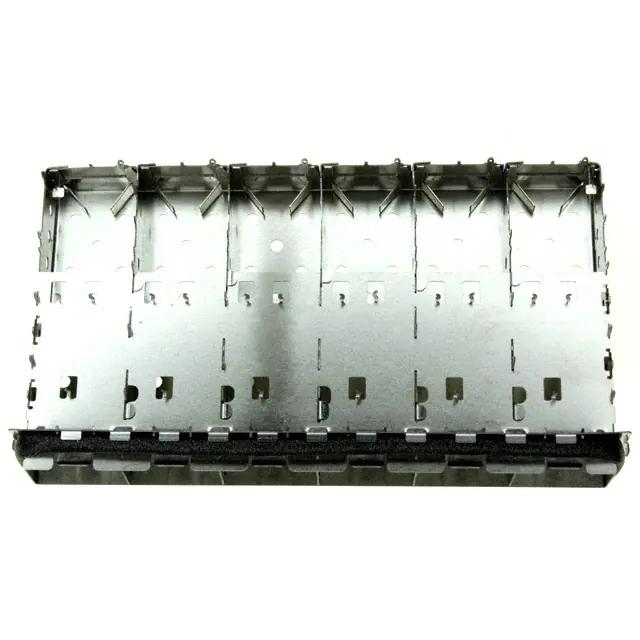

2007170-1 SFP+ Cage 1 x 6 Port Through Hole Press-Fit Mount
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
2007170-1 SFP+ Cage 1 x 6 Port Through Hole Press-Fit Mount
SFP+,Cage, Data Rate (Max) 16 Gb/s, Elastomeric Gasket, SFP+, 1 x 6, Through Hole - Press-Fit Mount, 6 Port, Cable-to-Board, Sealable
| Part Number | 2007170-1 |
|---|---|
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage, Ganged (1 x 6) |
| Number of Ports | 1X6 port |
| Included Lightpipe | NO |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 16 Gb/s |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 1.5 mm [ .059 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
2007170-1 Description:
.2007170-1 SFP+ Cage Ganged (1 x 6)
.2007170-1 1x6 Port SFP+ Cage
.2007170-1 SFP+ Cage Assembly 16 Gb/s
.2007170-1 1x6 Port SFP+ Cage
.2007170-1 SFP+ Cage Assembly 16 Gb/s
.2007170-1 SFP+ Cage Through Hole Right Angle
2007170-1 Similar Part Number :
| 4-2170705-2 | 2143451-1 | 2291634-2 |
| 2291634-3 | 2007170-1 | 1888971-1 |
| 2170395-1 | 2299056-1 | 1551892-3 |
| 2-2170705-5 | 2344508-1 | 2007464-1 |
| 2170703-6 | 2170744-1 | 2227731-1 |
What is SFP+ Cage ?
SFP+ cage is designed with metal fingers in each cage port to protect against Electromagnetic Interference (EMI)
and improve contact interface to the mating surface when inserted into the chassis opening. The EMI metal cages
are available in 1x1, 1x2, 1x3, 1x4 and 1x6 configurations.
What is difference between SFP and SFP+?
SFP and SFP+ transceivers are virtually identical in size and appearance.
The primary difference is that SFP+ is an updated version that supports higher speeds up to 10Gbps.
The difference in data rate also accounts for a difference in transmission distance—SFP typically
has a longer transmission distance.
What is the purpose of SFP module?
SFP ports and their corresponding SFP modules are used to facilitate seamless,
high-speed data communications or telecommunications connections over extended
distances in a variety of applications.
