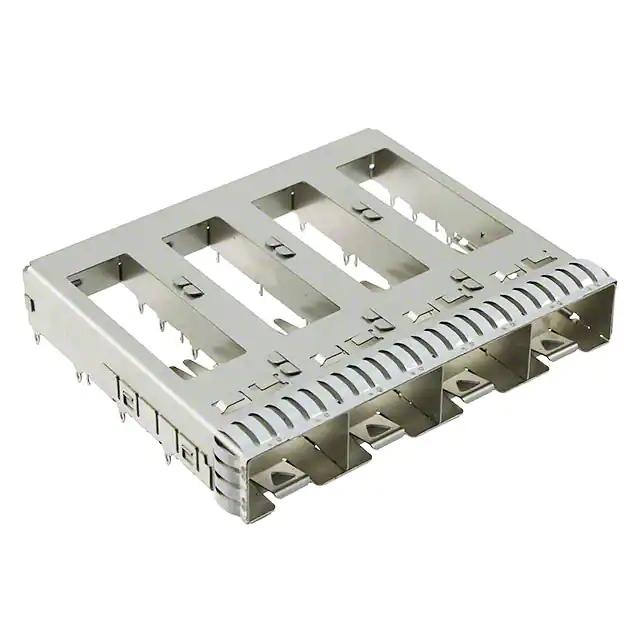

2169260-1 SFP+ Cage Ganged 1 X 4 Connector NO Lightpipe Through Hole
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
2169260-1 SFP+ Cage Ganged (1 x 4) Connector NO Lightpipe Through Hole
SFP+,Cage, Data Rate (Max) 16 Gb/s, External Springs, SFP+ Enhanced, 1 x 4, Through Hole - Press-Fit Mount, 4 Port, Cable-to-Board
| Part Number | 2169260-1 |
|---|---|
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage Ganged (1 x 4 ) |
| Number of Ports | 1X4 port |
| Included Lightpipe | NO |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 16 Gb/s |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 2.25 mm [ .089 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

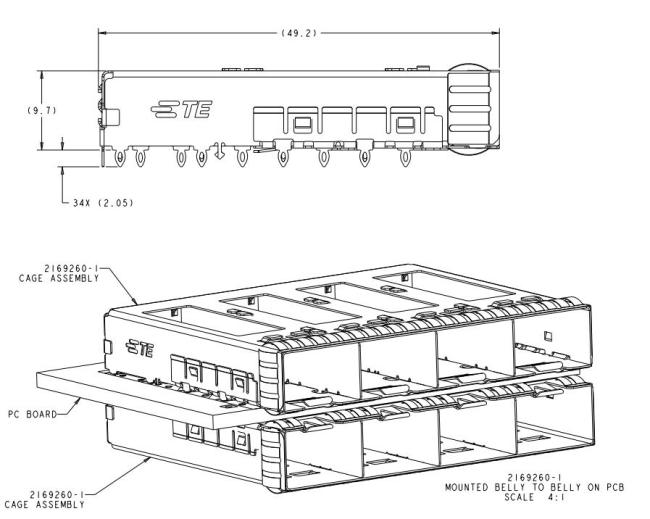

2169260-1 Drawing:
2169260-1 Description:
.2169260-1 SFP+ Cage Connector 1 x4 Port
.2169260-1 1x4 Port SFP+ Cage
.2169260-1 SFP+ Cage Assembly 1x4 Port
.2169260-1 1x4 Port SFP+ Cage
.2169260-1 SFP+ Cage Assembly 1x4 Port
.2169260-1 SFP+ Cage Ganged (1 x4) Connector Through Hole
2169260-1 SFP+ Cage Similar Part Number :
| 2284170-1 | 2007251-1 | 2007181-1 |
| 2007132-1 | 2007180-1 | 2110069-1 |
| 2170744-4 | 2170805-1 | 2169260-1 |
| 2057555-1 | 2300275-1 | 2338495-3 |
| 2170746-2 | 2170805-5 | 2007250-1 |
What is SFP+ Cage ?
SFP+ cage is designed with metal fingers in each cage port to protect against Electromagnetic Interference (EMI)
and improve contact interface to the mating surface when inserted into the chassis opening. The EMI metal cages
are available in 1x1, 1x2, 1x3, 1x4 and 1x6 configurations.
