TE 2007464-2 SFP+ Cage With Heat Sink External Springs
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

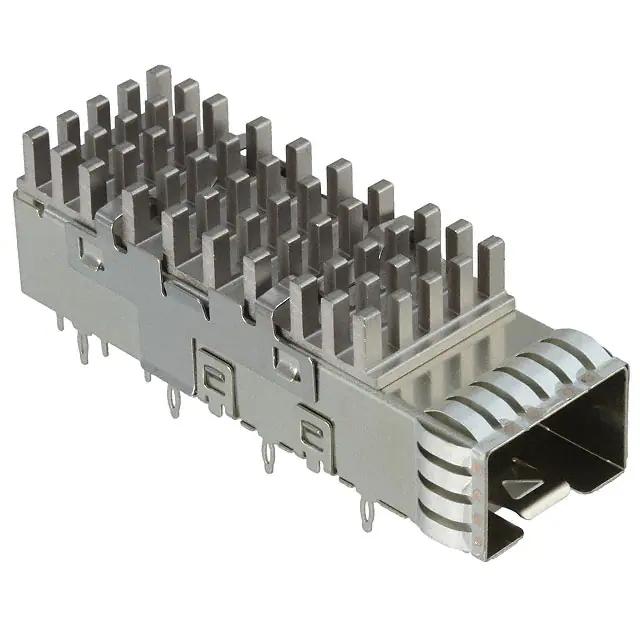

TE 2007464-2 SFP+ Cage With Heat Sink External Springs
2007464-2,SFP+, Cage Assembly, Data Rate (Max) 16 Gb/s, External Springs, SFP+, 1 x 1, Pin, Heat Sink Height 6.5 mm [.256 in]
| Part Number | 2007464-2 |
|---|---|
| Part Status | Active |
| Connector Type | QSFP+ |
| Connector Style | Cage with Heat Sink |
| Number of Ports | 1X1 port |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 16 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 2.25 mm [ .089 in ] |
| Tail Length | 2.2 mm [ .086 in ] |
| Cage Material | Nickel Silver Alloy |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
TE 2007464-2 SFP+ Cage With Heat Sink Drawing:
TE 2007464-2 Description:
.2007464-2 SFP+ Cage With Heat Sink
.2007464-2 1x1 SFP+ Cage With Heat Sink
.2007464-2 SFP+ Cage
.2007464-2 1x1 SFP+ Cage With Heat Sink
.2007464-2 SFP+ Cage
.2007464-2 SFP+ Cage External Springs
2007464-2 Similar Part Number :
| 2007473-1 | 2007464-2 | 2198721-1 |
| 1888631-1 | 2227104-1 | 2300281-1 |
| 4-2338495-1 | 1888631-3 | 2170746-1 |
| 2170288-1 | 2007135-1 | 2198722-1 |
| 2170030-1 | 2173238-1 | 2198720-1 |
LINK-PP Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
What is difference between SFP and SFP+?
SFP and SFP+ transceivers are virtually identical in size and appearance.
The primary difference is that SFP+ is an updated version that supports higher speeds up to 10Gbps.
The difference in data rate also accounts for a difference in transmission distance—SFP typically
has a longer transmission distance.
