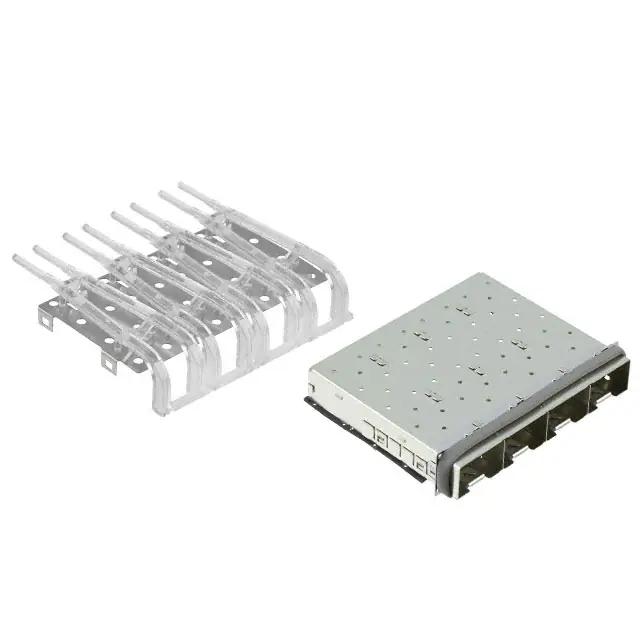

TE 2198721-1 zSFP+ Cage Ganged (1 x 4) Connector EMI Enhanced
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 2198721-1 zSFP+ Cage Ganged (1 x 4) Connector EMI Enhanced
2198721-1,zSFP+, Cage Assembly, Data Rate (Max) 28 Gb/s, Elastomeric Gasket, EMI Enhanced, Included Lightpipe, 1 x 4, Integrated Lightpipes
| Part Number | 2198721-1 |
|---|---|
| Part Status | Active |
| Connector Type | zSFP+ |
| Connector Style | Cage, Ganged (1 x 4) |
| Number of Ports | 1X4 port |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 28 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 3 mm [ .118 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver Alloy |
| EMI Containment Feature Type | Elastomeric Gasket |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

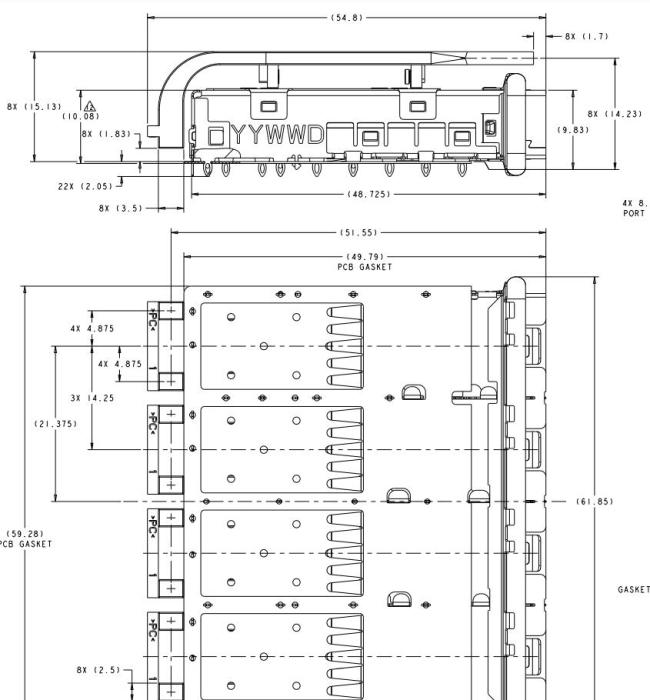

TE 2198721-1 zSFP+ Cage Ganged (1 x 4) Connector Drawing:
TE 2198721-1 Description:
.2198721-1 zSFP+ Cage Ganged (1 x 4) Connector
.2198721-1 1x4 zSFP+ Cage
.2198721-1 zSFP+ Cage 28Gb/s
.2198721-1 1x4 zSFP+ Cage
.2198721-1 zSFP+ Cage 28Gb/s
.2198721-1 zSFP+ Cage EMI Enhanced
2198721-1 Similar Part Number :
| 2007473-1 | 2007464-2 | 2198721-1 |
| 1888631-1 | 2227104-1 | 2300281-1 |
| 4-2338495-1 | 1888631-3 | 2170746-1 |
| 2170288-1 | 2007135-1 | 2198722-1 |
| 2170030-1 | 2173238-1 | 2198720-1 |
What is difference between SFP and SFP+?
SFP and SFP+ transceivers are virtually identical in size and appearance.
The primary difference is that SFP+ is an updated version that supports higher speeds up to 10Gbps.
The difference in data rate also accounts for a difference in transmission distance—SFP typically
has a longer transmission distance.
