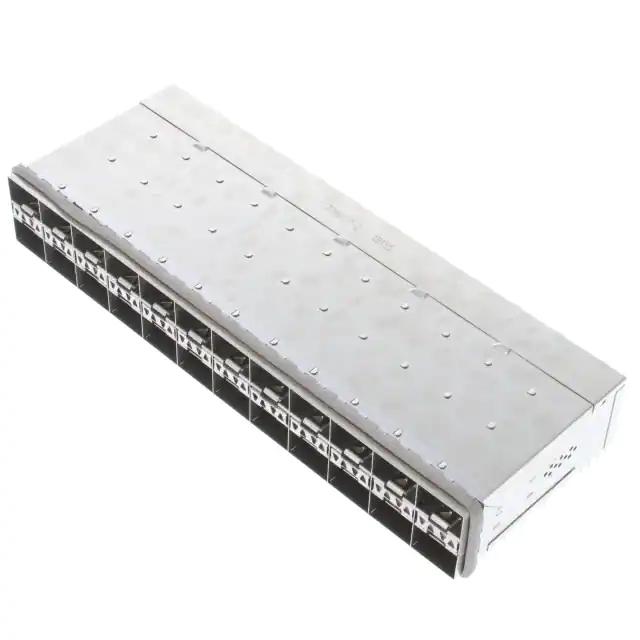

TE 2288172-2 ZSFP+ Receptacle With Cage 2x12 Elastomeric Gasket Included Lightpipe
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 2288172-2 zSFP+ Receptacle with Cage 2x12 Elastomeric Gasket Included Lightpipe
2288172-2,zQSPF+,Cage Assembly with Integrated Connector, Data Rate (Max) 32 Gb/s, Elastomeric Gasket, zSFP+ Thermally Enhanced, Included Lightpipe
| Part Number | 2288172-2 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | zSFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x12) |
| Number of Ports | 2X12 port |
| Number of Rear EONs per Port Column | - |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 32 |
| Features | EMI Shielded |
| Operating Temperature Range | 0 – 70 °C |
| PCB Thickness (Recommended) | 1.5 mm [ .059 in ] |
| Tail Length | 1.8 mm [ .07 in ] |
| Cage Material | Nickel Silver Alloy |
| EMI Containment Feature Type | External Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
TE 2288172-2 zSFP+ 2x12 Cage:
2288172-2 Similar Part Number :
| 2288172-2 | 2349050-1 | 2359845-3 |
| 2288172-6 | 2350202-1 | 2214574-4 |
| 2359845-2 | 2170707-3 | 2007456-2 |
| 2198230-1 | 2198234-3 | 2198235-3 |
| 2198233-4 | 2198373-1 | 2198241-3 |
ZSFP+ PLUGGABLE I/O INTERCONNECT FEATURES:
●Data rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4, 10
●Gbps Ethernet and 16 Gbps Fibre Channel
●Surface-mount connector design for single high 1xN cages
●Press-fit 1xN cages and stacked assemblies (connector and
cage) for one-step, easy PCB placement
●Coupled, narrow-edged, blanked- and formed-contact beam
geometry and insert molding for superior signal integrity,
mechanical and electrical performance
●Backwards-compatibility: Shares same mating interface and
cage dimensions with the SFP+ connector (connector/single
high cages are also PCB footprint-compatible)
● Elastomeric gasket or spring finger options for EMI
containment
●Single high cages (1xN) for design flexibility; accommodates
belly-to-belly applications for increased density and PCB
space savings; available in 1x1, 1x2, 1x3, 1x4 or 1x6 port
configurations
● Stacked assemblies offered in 2x1, 2x2, 2x4, 2x6, 2x8 or 2x12
port
●Heat sinks, LEDs and plating choices offered
●Additional light pipe configurations available
