TE 2198373-1 ZQSFP+ 2x1 Cage Assembly With Integrated Connector Elastomeric Gasket
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 2198373-1 ZQSFP+ 2x1 Cage Assembly With Integrated Connector Elastomeric Gasket
2198373-1,ZQSFP+,Cage Assembly with Integrated Connector, 2 x 1, Elastomeric Gasket, Standard, Data Rate (Max) 28 Gb/s, 2 Port
| Part Number | 2198373-1 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | ZQSFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x1) |
| Number of Ports | 2X1 port |
| Number of Positions | 76 (38 x 2) |
| Number of Rear EONs per Port Column | 3 |
| Included Lightpipe | No |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 28 |
| Features | EMI Shielded |
| Operating Temperature Range | -40 – 85 °C |
| PCB Thickness (Recommended) | 1.57 mm [ .062 in ] |
| Tail Length | 2 mm [ .079 in ] |
| Cage Material | Nickel Silver Alloy |
| EMI Containment Feature Type | Customer Applied Gasket |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

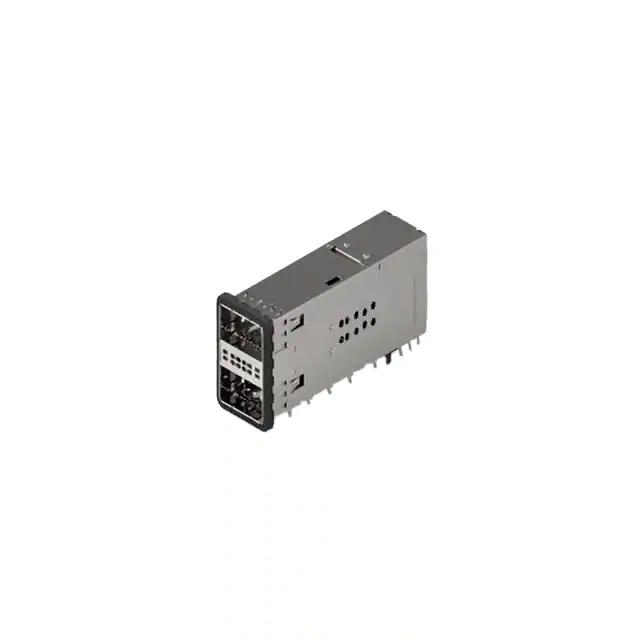

TE 2198373-1 ZQSFP+ 2x1 Cage Assembly :

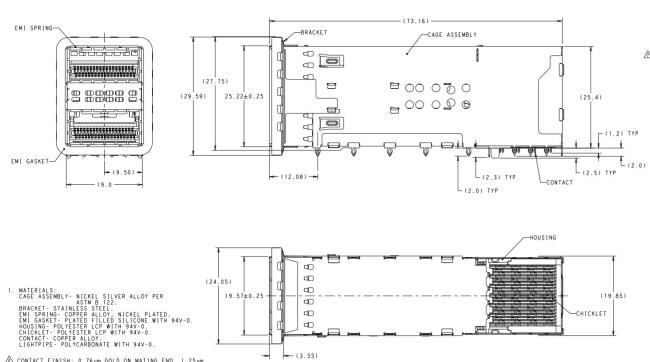

2198373-1 ZQSFP+ 2x1 Cage Assembly With Integrated Connector Dimension:
2198373-1 Similar Part Number :
| 2288172-2 | 2349050-1 | 2359845-3 |
| 2288172-6 | 2350202-1 | 2214574-4 |
| 2359845-2 | 2170707-3 | 2007456-2 |
| 2198230-1 | 2198234-3 | 2198235-3 |
| 2198233-4 | 2198373-1 | 2198241-3 |
Is SFP faster than Ethernet?
Since RJ45 Ethernet port and SFP port actually run at the same speed, choosing RJ45
ports to connect Ethernet switches might be more economical as Cat5e/Cat6 cable is lower-priced
ports to connect Ethernet switches might be more economical as Cat5e/Cat6 cable is lower-priced
than the SFP connection with both transceivers and corresponding cables.
