TE 2198230-3 SFP+ 1x2 Cage Assembly Connector With Lightpipe 16 Gb/S External Springs
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 2198230-3 SFP+ 1x2 Cage Assembly Connector With Lightpipe 16 Gb/s External Springs
2198230-3,SFP+ , Cage Assembly, Data Rate (Max) 16 Gb/s, External Springs, SFP+ Enhanced, 1 x 2, Pin, Heat Sink Height 9.1 mm [.358 in]
| Part Number | 2198230-3 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage, Ganged (1 x 2) with Heat Sink |
| Number of Ports | 1X2 port |
| Heat Sink Height | 9.1 mm [ .358 in ] |
| Included Lightpipe | No |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 16 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 2.25 mm [ .089 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver Alloy |
| EMI Containment Feature Type | External Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

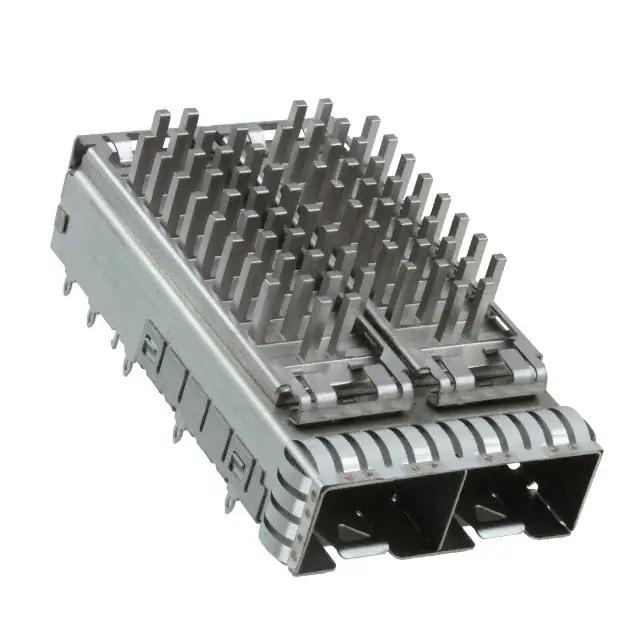

TE 2198230-3 SFP+ 1x2 Cage :

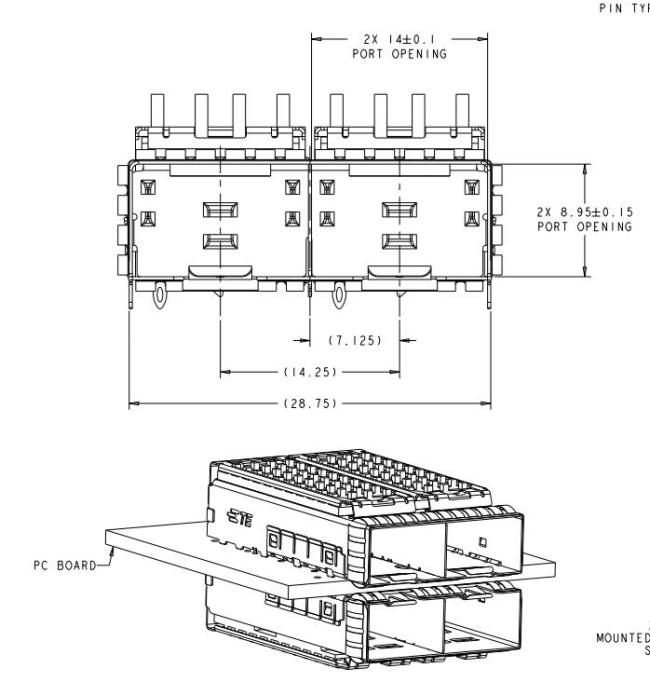

TE 2198230-3 SFP+ 1x2 Cage Assembly Connector Dimension:
2198230-3 Similar Part Number :
| 4-2170747-4 | 2170747-2 | 2198230-3 |
| 2170808-6 | 4-2170747-5 | 2057183-2 |
| 2198373-2 | 2057042-3 | 1-2007394-7 |
| 2227103-2 | 2-2170808-3 | 2227666-3 |
| 2214593-2 | 2170738-3 | 2170707-1 |
Is SFP the same as RJ45?
SFP port is used instead of RJ45 port which can cause electrical interference.
Another reason could be power consumption. When there are more than 100 links,
choosing SFP ports is more power-saving than Ethernet ports.
Another reason could be power consumption. When there are more than 100 links,
choosing SFP ports is more power-saving than Ethernet ports.
