TE 2227667-1 ZQSFP+ 2x2 Cage Connector 28 Gb/s Press-Fit Through Hole
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 2227667-1 ZQSFP+ 2x2 Cage Connector 28 Gb/s Press-Fit Through Hole
2227667-1,zQSPF+, Cage Assembly with Integrated Connector, 2 x 2, Internal/External EMI Springs, Standard, Data Rate (Max) 28 Gb/s
| Part Number | 2227667-1 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | ZQSFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x2) |
| Number of Positions | 152 (38 x 4) |
| Number of Rear EONs per Port Column | 0 |
| Number of Ports | 2X2 port |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 28 |
| Features | EMI Shielded |
| Operating Temperature Range | -40 – 85 °C |
| PCB Thickness (Recommended) | 1.57 mm [ .062 in ] |
| Tail Length | 2 mm [ .079 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | Elastomeric Gasket |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

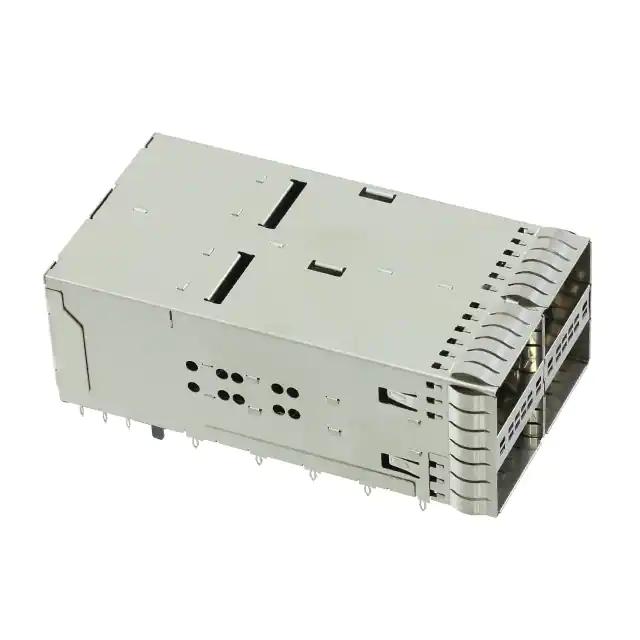

TE 2227667-1 ZQSFP+ 2x2 Cage:

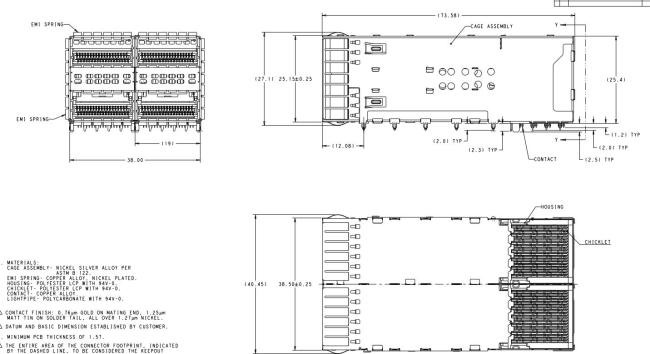

TE 2227667-1 ZQSFP+ 2x2 Cage Connector 28 Gb/s Dimension:
2227667-1 Similar Part Number :
| 2214565-2 | 2227249-2 | 2308171-9 |
| 2007399-5 | 2-2170808-4 | 2-2170808-1 |
| 2308171-5 | 2227667-1 | 2227669-1 |
| 1-2180324-9 | 2-2170740-3 | 2170790-4 |
| 2-2170808-6 | 2170747-5 | 1-2198346-9 |
Is zQSFP+ the same as QSFP28?
QSFP28 can do 4x25G breakout connection, 2x50G breakout, or 1x100G depending on the transceiver used.
While QSFP+ supports the data rate of 40G, 4 channels for transmitting and 4 channels for receiving, each lane
carrying 10G. QSFP+ can break out into 4x10G or 1x40G connection.
