TE 1-2198346-9 zSFP+ 2x8 Cage Connector External Springs 32 Gb/s Included Lightpipe
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
TE 1-2198346-9 zSFP+ 2x8 Cage Connector External Springs 32 Gb/s Included Lightpipe
1-2198346-9,zSFP+, Cage Assembly with Integrated Connector, Data Rate (Max) 32 Gb/s, External Springs, zSFP+ Thermally Enhanced, Included Lightpipe
| Part Number | 1-2198346-9 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | zSFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x8) |
| Number of Positions | 320 (16 x 20) |
| Number of Ports | 1X3 port |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 32 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 1.8 mm [ .07 in ] |
| Tail Length | 1.5 mm [ .059 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | Internal/External EMI Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

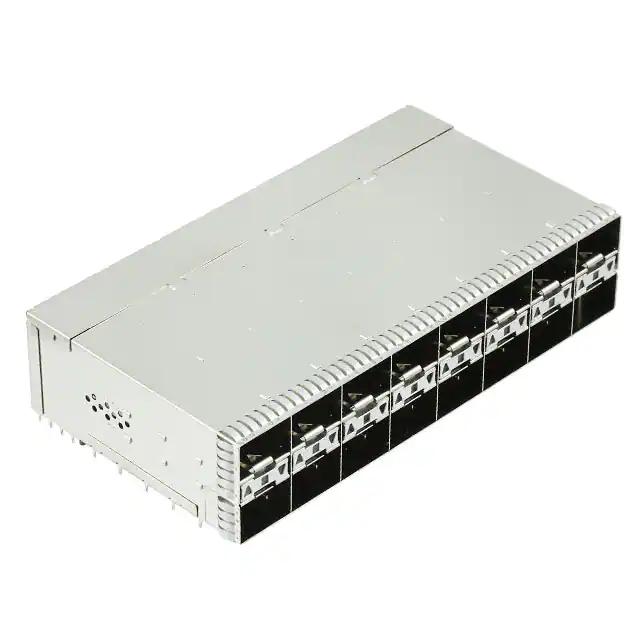

TE 1-2198346-9 zSFP+ 2x8 Cage Connector:

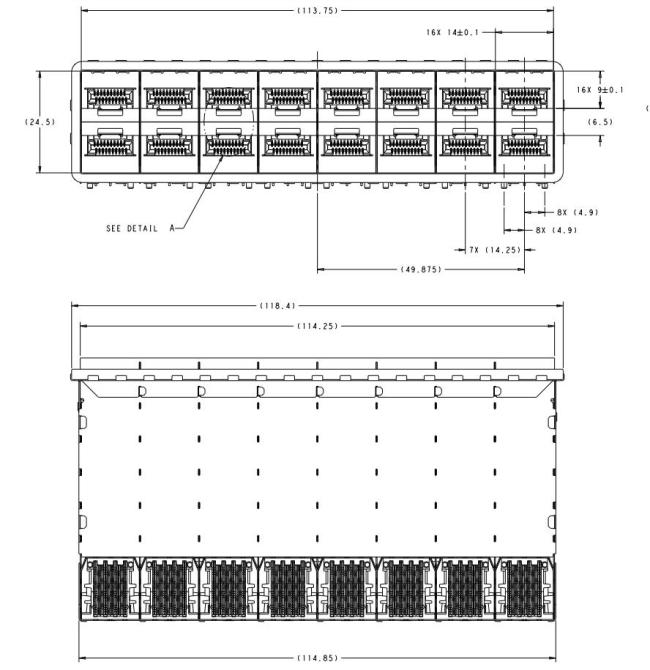

TE 1-2198346-9 zSFP+ 2x8 Cage Connector External Springs Dimension:
1-2198346-9 Similar Part Number :
| 2214565-2 | 2227249-2 | 2308171-9 |
| 2007399-5 | 2-2170808-4 | 2-2170808-1 |
| 2308171-5 | 2227667-1 | 2227669-1 |
| 1-2180324-9 | 2-2170740-3 | 2170790-4 |
| 2-2170808-6 | 2170747-5 | 1-2198346-9 |
ZSFP+ PLUGGABLE I/O INTERCONNECT:
The zSFP+ interconnect is currently one of the fastest single-channel I/O connectors on the market today, transferring data at 28
Gbps NRZ and 56 Gbps PAM-4. Through a design that is backward-compatible to SFP/SFP+ products, the interconnect is
hotswappable with existing SFP+ connectors for fast system upgrades of 28-56 Gbps. Alternatively, users can design-in the zSFP+
connector for 10-16 Gbps data rates, establishing a progressive path to higher speeds-an upgradeability that can result in longterm
cost savings as this would eliminate the need to fully redesign for higher performance.
The zSFP+ interconnect is compliant to SFF-8402 and has been adopted for Fibre Channel 32G (28.05 Gbps line rate). The entire
product family is offered as a dual source option with Molex. LLC.
