1-2007562-5 SFP+ 2x6 Cage Connector with Lightpipe External Springs 16 Gb/s
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
1-2007562-5 SFP+ 2x6 Cage Connector with Lightpipe External Springs 16 Gb/s
1-2007562-5,SFP+ ,Cage Assembly with Integrated Connector, Data Rate (Max) 16 Gb/s, External Springs, EMI Enhanced, Included Lightpipe, 2 x 6
| Part Number | 1-2007562-5 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x6) |
| Number of Ports | 2X6 port |
| Number of Positions | 240 (20 x 12) |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 16 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 1.5 mm [ .059 in ] |
| Tail Length | 3 mm [ .118 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | External Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

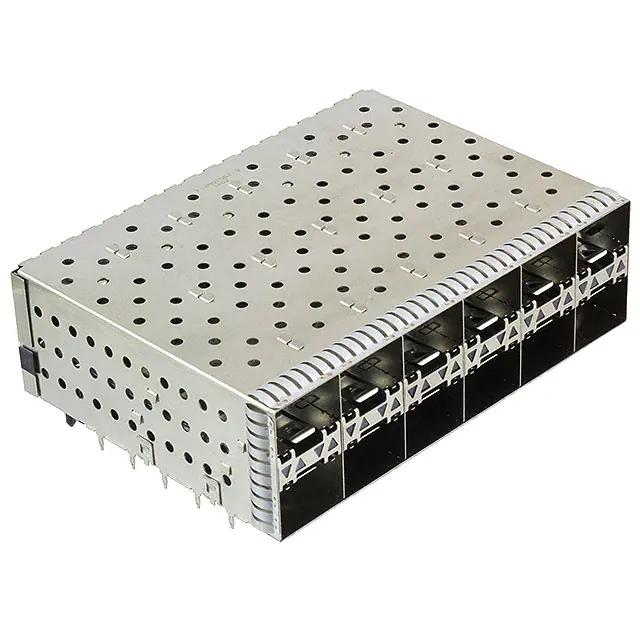

TE 1-2007562-5 SFP+ 2x6 Cage Connector:

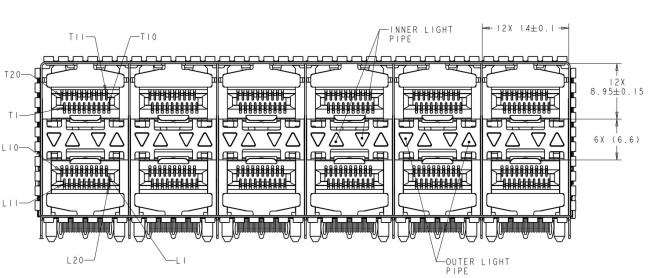

1-2007562-5 SFP+ 2x6 Cage Connector with Lightpipe Dimension:
1-2007562-5 Similar Part Number :
| 2007625-1 | 2170790-3 | 4-2170808-2 |
| 1-2007492-8 | 2198325-2 | 2198339-2 |
| 1-2007562-5 | 2170745-3 | 2143330-1 |
| 2170745-1 | 2227670-2 | 2308171-8 |
| 2227671-3 | 2149730-4 | 2227249-3 |
How do I know which SFP to use?
When choosing SFP modules, you should consider whether it matches the switch port
and the cable you have prepared. If you have multimode cable, then you can choose
GLC-SX-MM 1000BASE SFP. If you use single-mode fiber cable, you should select GLC-LH-SM 1000BASE SFP.
