2149730-4 SFP+ 1x4 Cage With Heat Sink 16 Gb/s Press-Fit Through Hole
Price:
$0.11-$35
MOQ:
10/100/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description
2149730-4 SFP+ 1x4 Cage With Heat Sink 16 Gb/s Press-Fit Through Hole
2149730-4,SFP+,Cage Assembly, Data Rate (Max) 16 Gb/s, External Springs, SFP+ Enhanced, 1 x 4, Pin, Heat Sink Height 13.5 mm [.531 in]
| Part Number | 2149730-4 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage, Ganged (1 x 4) with Heat Sink |
| Number of Ports | 1X4 port |
| Included Lightpipe | No |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 16 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 2.25 mm [ .089 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

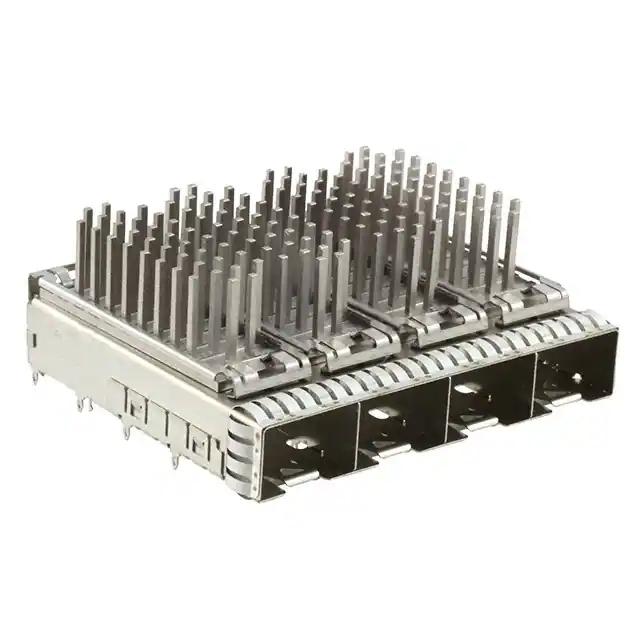

2149730-4 SFP+ 1x4 Cage With Heat Sink:

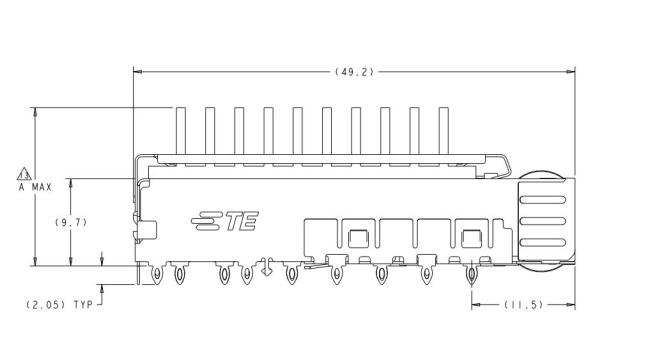

2149730-4 SFP+ 1x4 Cage With Heat Sink 16 Gb/s Press-Fit Through Hole Dimension:
2149730-4 Similar Part Number :
| 2007625-1 | 2170790-3 | 4-2170808-2 |
| 1-2007492-8 | 2198325-2 | 2198339-2 |
| 1-2007562-5 | 2170745-3 | 2143330-1 |
| 2170745-1 | 2227670-2 | 2308171-8 |
| 2227671-3 | 2149730-4 | 2227249-3 |
What is difference between SFP and SFP+?
SFP and SFP+ transceivers are virtually identical in size and appearance.
The primary difference is that SFP+ is an updated version that supports higher speeds up to 10Gbps.
The difference in data rate also accounts for a difference in transmission distance—SFP typically
has a longer transmission distance.
How do I know which SFP to use?
When choosing SFP modules, you should consider whether it matches the switch port
and the cable you have prepared. If you have multimode cable, then you can choose
GLC-SX-MM 1000BASE SFP. If you use single-mode fiber cable, you should select GLC-LH-SM 1000BASE SFP.
