SR4 850nm 100m 100G QSFP28 Transceiver , OM4 Optical Modules data center use

100G QSFP28 SR4 850nm 100m OM4 Optical Modules data center 100G QSFP28 Transceiver

• 4 independent full-duplex channels
• Up to 25.78125Gbps data links per channel.
• MTP/MPO optical connector
• Hot pluggable QSFP28 MSA form factor
• Digital diagnostic capabilities
• Capable of over 100m transmission on OM4 multi-mode ribbon fiber
• CML compatible electrical I/O
• Single +3.3V power supply
• Operating case temperature: 0~70C
• XLPPI electric interface (with 1.5W Max power)
• RoHS-6 compliant

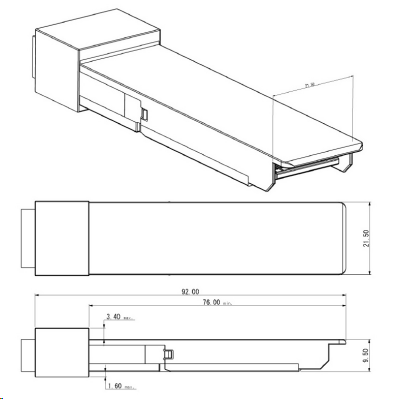

Specification:



Description:


(1)This product is a 100Gb/s transceiver module designed for optical communication applications compliant to the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

(2)The central wavelengths of the 4 LAN WDM channels are 850, 1295.56, 1300.05, 1304.58 and 1309.14nm as members of the LAN WDM wavelength grid defined in IEEE 802. 3ba.The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Cisco QSFP-100G Product:


Applications


• 100G Ethernet
• Infiniband interconnects
• 100G Telecom connections
• Data Centers


Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
