43 Inch Fanless IP65 Waterproof Outdoor Wayfinding Touch Screen Totem Black and Aluminum Plate Heat Dissipation Included
43 Inch Fanless IP65 Waterproof Outdoor Wayfinding Touch Screen Totem
Quick details of all weather outdoor digital signage display :
1. Highly transparent tempered glass, high-brightness screen
2. IP65 protection level for outdoor use
3. Automatic light sensor regulator installed
4. Aluminum heat sink is used on the back shell for silent heat dissipation

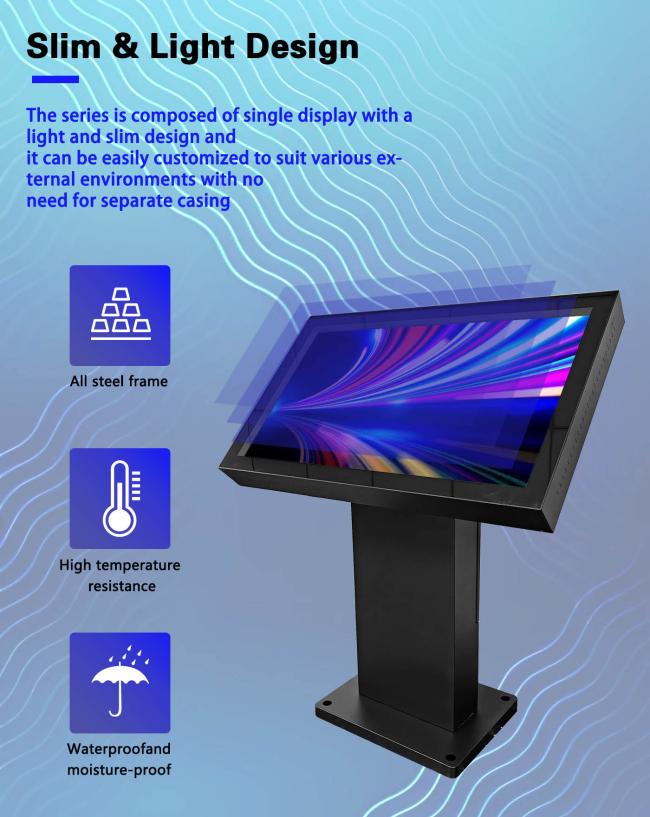

5. Ultra-thin body, reserved holes for anchor screws for floor installation
6. 10 points G+F touch screen
Specification of sunlight readable outdoor LCD advertising screen :
| Resolution | 1920*1080 | |||||
| Screen size | 43 inch | |||||
| Display area | 1209*680 mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Aluminum plate heat dissipation | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 180W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Touch Type | 10 points PCAP foil touch screen | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Dimension | TBC | |||||
| Wooden box packing | TBC | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| Memory | RK3568 Quadcore 1.2GHZ | |||||
| Internet connection | WIFI, LAN, 4G on option | |||||
| RAM | DDR4 2G, 4G, 8G | |||||
| Memory | 32G or 64G or 128G | |||||

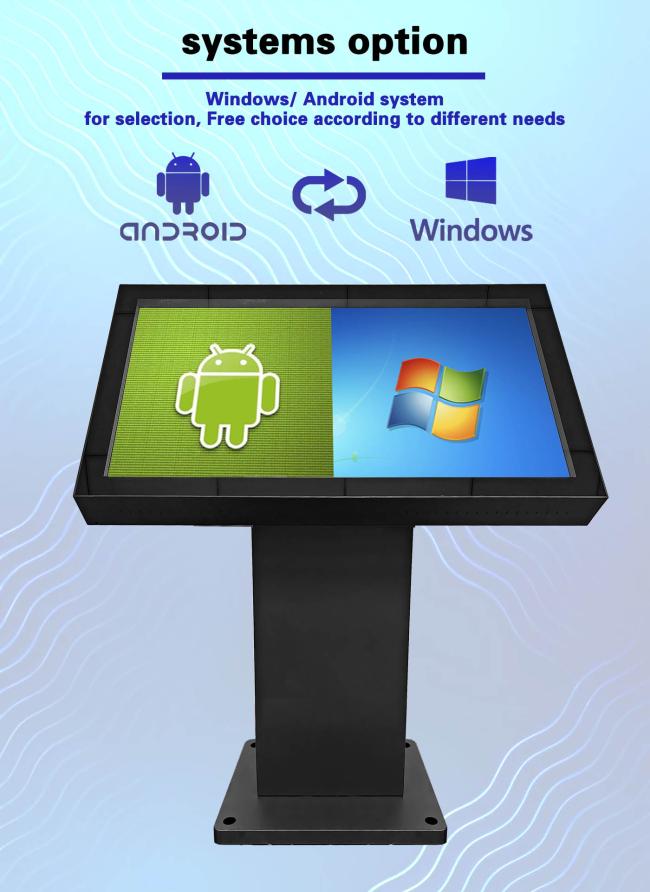

| System | Android 11.0, support Google play | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
Application of outdoor waterproof LCD digital monitor :
The smart city kiosk can be installed in the airport, street or park for people to check information like news, way finding map and weather, also the digital menu board kiosk can be put in the bus station, subyway station and train station to display advertising and entertainment video.
