- Shell material: profile+sheet metal
- Resolution: 1,920 x 1080

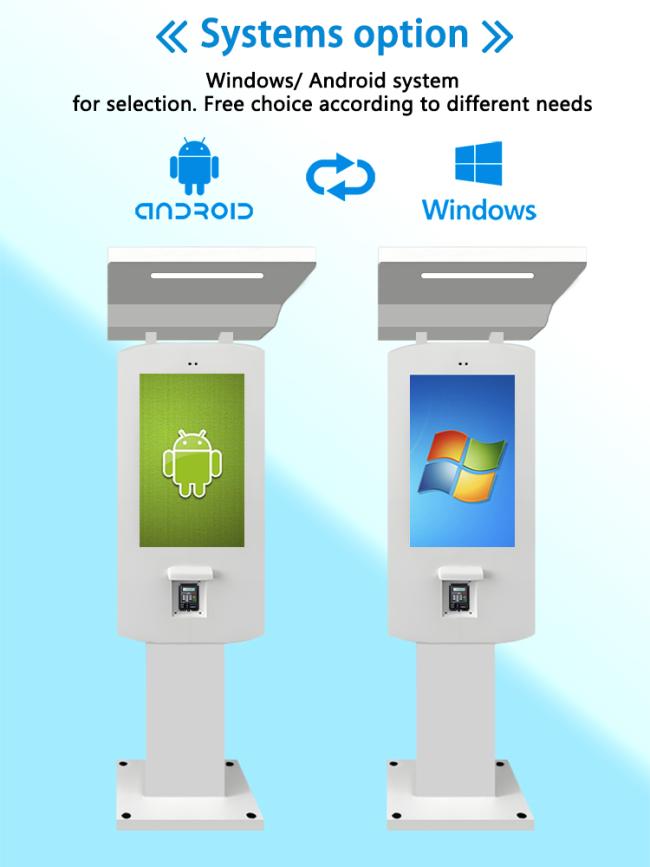

- windows: Intel I3/Dual Core 2.8GHz
- Android: RK3288 (2G+16G), 4-core 1.8GHz
- Touch screen type: Multi-touch Touch
- life: 50 million times
- Touch mode: finger or stylus
- Glass type: reinforced glass
- Light transmittance: 95%
- Power supply: 110V-220V
- barcode scanning Printer: 80mm;
- Printing speed: 170 mm/s

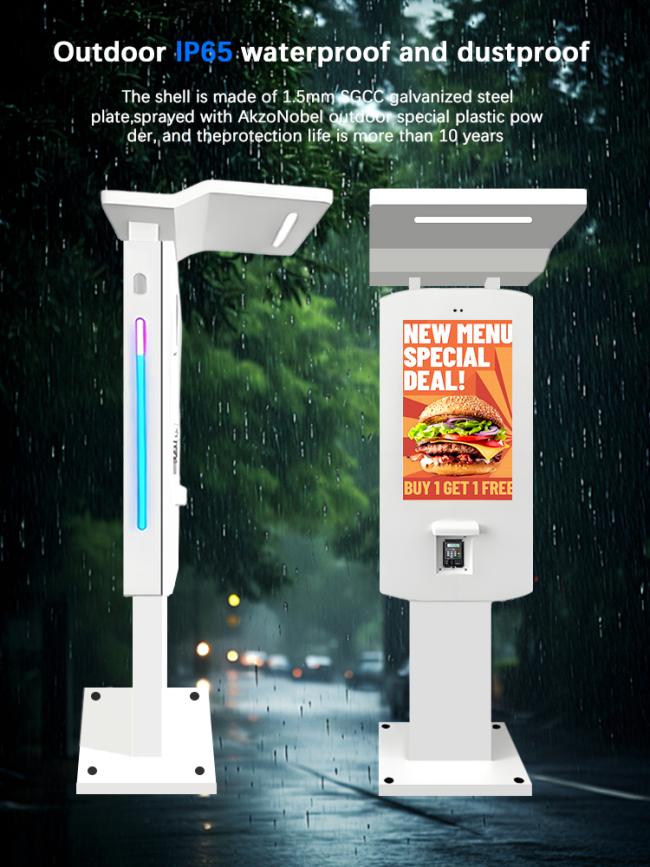

32" Outdoor IP65 Waterproof Floor Stand Touch Screen Self-Service Terminal Kiosk for Ordering Food and Payment
32" Outdoor IP65 Waterproof Floor Stand Touch Screen Self-Service Terminal Kiosk for Ordering Food and Payment
Applications:
Stock exchanges, Traffic control centers, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
Specifications:
Technical Parameter for LCD Panel
|
product |
32" Outdoor Waterproof Touch Screen Ordering Machine with Rain Canopy |
|
model |
MJHD-320 |
|
Screen type |
32" TFT LCD |
|
Display area |
700(W)×394(H) |
|
Aspect ratio |
16:9 |
|
resolution |
1366×768 |
|
Number of colors |
16.7M |
|
Dot pitch |
0.510(H)×0.510(V) |
|
brightness |
600cd/㎡ |
|
contrast |
2000:1 |
|
Viewing angle |
178°/178° |
|
Response time |
5ms |
|
HF |
31k~60kHZ |
|
VF |
56~75HZ |
|
color system |
PAL/NTSC/SECAM |
|
Signal interface |
Input:2*BNC,1*VGA,,1*,1*AUDIO output:1*BNC |
|
voltage |
AC 100V~240V |
|
On mode |
≤120W |
|
Standby model |
≤3W |
|
Working temperature |
0°~50° |
|
humidity |
20%~80% |
|
Life |
60000H |
|
color |
Black/white/customized |
|
installment |
Desktop/wall mounted |
|
certification |
CE/3C/FCC/UL |
|
Dimension |
773.6×470×116.2 |
|
Net weight |
23KG |
Competitive Advantage:
Wide voltage range,AC 110V~240V,industrial grade design,can be used in harsh environment.
