Ultra Narrow Bezel 55" Digital Signage Video Wall 1080P HD 3.5mm 500 Brightness
Ultra Narrow Bezel 55" Digital Signage Video Wall 1080P HD 3.5mm 500 Brightness splicing screens wall large size monitor
Features:

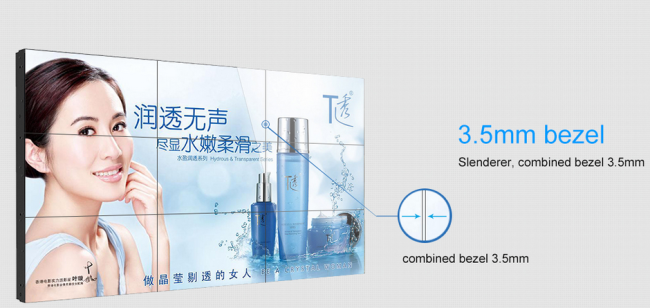

1. LG video wall panel with ultra-narrow bezel 3.5mm.
2. High brightess,high color gamut ,high contrast ratio,display prefect pictures.
3.Adopt intelligent color adjustment technology,make sure the colour uniformity OF each screen,show vivid pictures.
4.GENEVISION LCD splicing unit adopts 5ms instant response time. No shadow or tail in picture.
5. Long life, stable operation, no burns, injuries, low maintenance costs
6. Adopt intelligent temperature-control heat-dissipaton technology,continuous 7*24H work dtably,more then 60000 hours life cycle.
7.Low power consumption ,about 50 % of the normal display.
8.Rich input signal output interface, may meet computer and all kinds of video equipment .

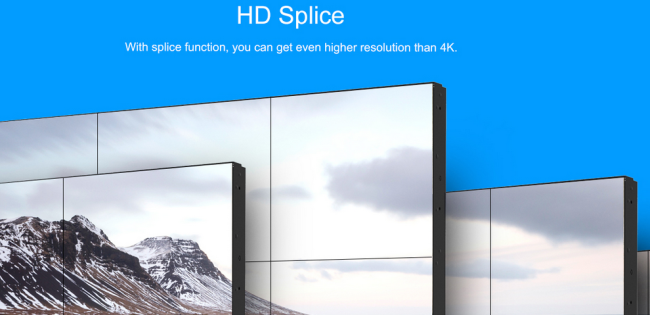

9.Built-in splicing controller .
| Specifications | ||||||
| Model N | MD-550 | |||||
| Panel Size | 55" LG LCD Screen(with narrow bezel 5.3mm,with LED Backlight) | |||||
| Aspect Ratio | 16:9 | |||||
| Max Resolution Support | 1920x1080 | |||||
| Color | 8Bit,16.7M | |||||
| Brightness (nits) | 450cd/m2 | |||||
| Contrast | 3500:1 | |||||
| Visual Angle (H/V) | 178° | |||||
| Response Time | <=6ms | |||||
| Life(hrs) | >60,000(hrs) | |||||
| Input and output | ||||||
| DVI | 1 | |||||
| 1 | ||||||
| VGA | 1 | |||||
| YPbPr | 1(BNCx3) | |||||
| S-video | 1(BNCx2) | |||||
| Composite Video Input/(AV) | 3(BNCx3) | |||||
| Composite Video Output | 2(BNCx2) | |||||
| Control signal input and loop out | RS232(RJ45-8) | |||||
| Split Screen | Support Picture in Picture(PIP/POP) | |||||
| Power | ||||||
| Power Supply | AC100V~240V | |||||
| Maximum Power Consumption | 250W | |||||
| Standby Power Consumption | <=3W | |||||
| Temperature | ||||||
| Working Temperature | 0°C~50°C | |||||
| Working Humidity | 20%-80% | |||||
| Dimension | 1215.3mm × 686.1mmx116.2mm | |||||
| Video Wall Controller(Built-in each Screen) | ||||||
| Model No. | US-P816A | |||||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||||
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||
| Operate mode | Panel key operation(Customized) | |||||
| Standard RS232 port( provide free control software) | ||||||
| Infrared Remote Control Operation | ||||||
| Engineering software | Customized | |||||
| Working temperature | 0~70 °C | |||||
| working humidity | 5~95 %RH | |||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||
| power consumption | Max 300W,according to different Screen models | |||||
| Dimension | 338×295×60(mm) | |||||
| Weight | About 3.5KG | |||||
