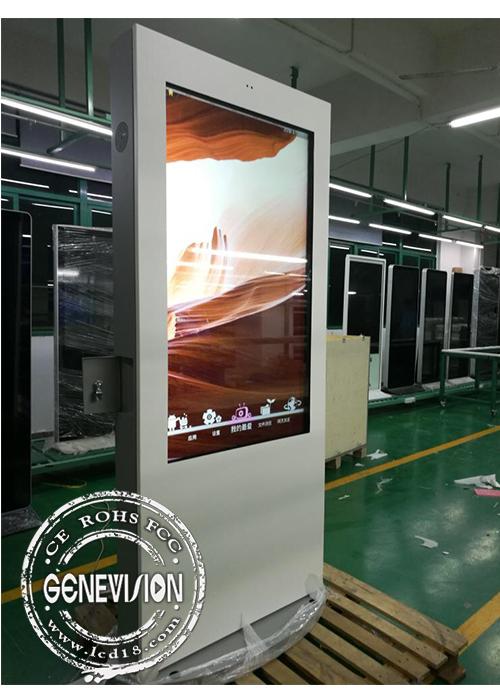

55 Inch Waterproof Digital Signage PCAP Touch Screen LCD Advertising Totem Monitor
Waterproof 55inch Outdoor Digital Signage PCAP touch screen LCD Advertising Totem Monitor with Cooling System
Genevision has a large range of outdoor advertising player, from wall-mounted LCD screen to floorstanding media player kiosk, all can be waterproof and support water spraying test in our factory.
Brightness of 2000cd/m2 makes our outdoor range can be readable in the daylight, it also have a brightness sensor, which can help to save energy assumption and make people feel better looking to the screen in different light environment.
Ventilation system can be with fans and air-conditioner, both can make sure the player working in harsh environment from -40 to 55 Celsius degree.
Can be with 10-point PCAP touchscreen or PCAP film touch.
| Resolution | 1920*1080 | |||||
| Display area | 1214*684mm | |||||
| Glass | AG minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption, standard maximum 2000nits. | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 5000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-cooling system built-in, with patent fully intelligent temprature control technology including heating function | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 280W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Touch screen | 10-point PCAP film touch | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Bare dimension | 1960*850*260mm | |||||
| Wooden box packing size | 2120*1040*560mm, N.W./G.W.: 150/200kg | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Accessory | Power Cables, English Manual | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic | |||||
We have serveral operation systems on option:
Standalone, means advertising to be updated by USB/SD card manually.
| Interface | input*1, USB*1, SD card*1 |
| Memory | 4G |
| Interface | USB*1 |
| Memory | 8G |
| Interface | USB*2 |
Android, with remote managing software on option, you can control hundreds terminals' advertising via internet
| CPU | A20 Dual Core 1.2GHZ/ Eight core |
| RAM | DDR3 1G/2G |
| Memory | 8G |
| OS | Android 4.2/4.4.4/5.1/7.1 |
| Interface | 2*USB, 1*,1*SD, 1*LAN Port |
Windows, also can be with remote manaing software
| CPU | Dual core/I3/I5/I7 |
| Memory | DDR3 2G/4G/8G/16G |
| SSD | 32G/64G/128G |
| OS | Beat Windows7/10 |
| Internet connection | WIFI, LAN, 3G/4G/5G, GPS |
| Interface | out*1,USB *4 ,LAN *1, VGA*1 |
