OPTO-EDU A33.5130 7" LCD Digital Microscope 55x-550x Magnification 8.0M CMOS
Price:
FOB $1~1000, Depend on Order Quantity
MOQ:
1 pc
Delivery Time:
5~20 Days
Brand:
CNOEC, OPTO-EDU
Product Description

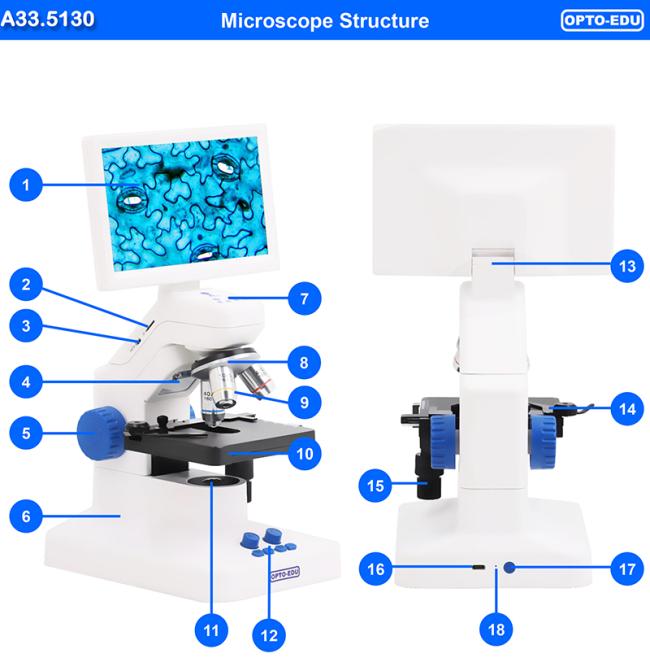

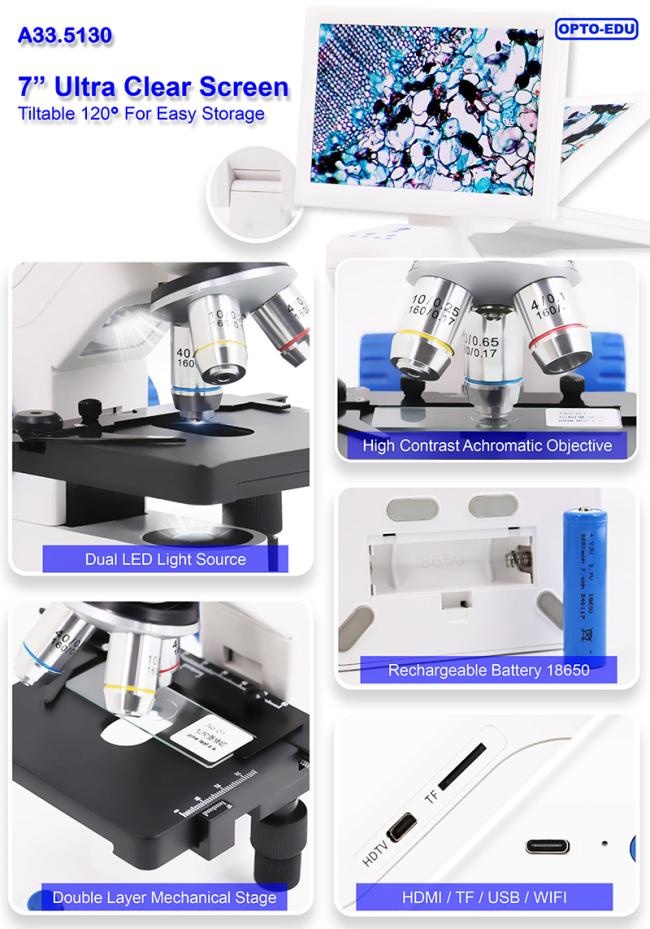

| 1. 7” LCD Screen | 2. TF Card Slot | 3. HDMI Output |
| 4. Upper LED Light | 5. Focusing Knob | 6. Main Body |
| 7. Brief Manual | 8. Nosepiece | 9. Objective |
| 10. Working Stage | 11. Bottom LED Light | 12. Function Buttons |
| 13.LCD Adjustable 120° | 14. Specimen Clip | 15. Stage X/Y Moving |
| 16. Type C USB & Power In | 17. Power Switch | 18. Power Indicator |
| A33.5130 7" LCD Digital Biological Microscope Specification | |
| Magnification | Optical 55x-550x, Digital Zoom 2x (20 Steps), Total Magnification 55x-1100x |
| With 100x Optional Objectives, Total Magnification Up To 2750x | |
| LCD Screen | 7” IPS LCD, Resolution 1024x600, Angle Adjustable 120° |
| Camera | CMOS 2.0M, Photo Resolution 8.0M, Video Resolution 1920x1080p |
| Sensor | 1/2.9“ CMOS |
| Pixel Size | 2.8x2.8um |

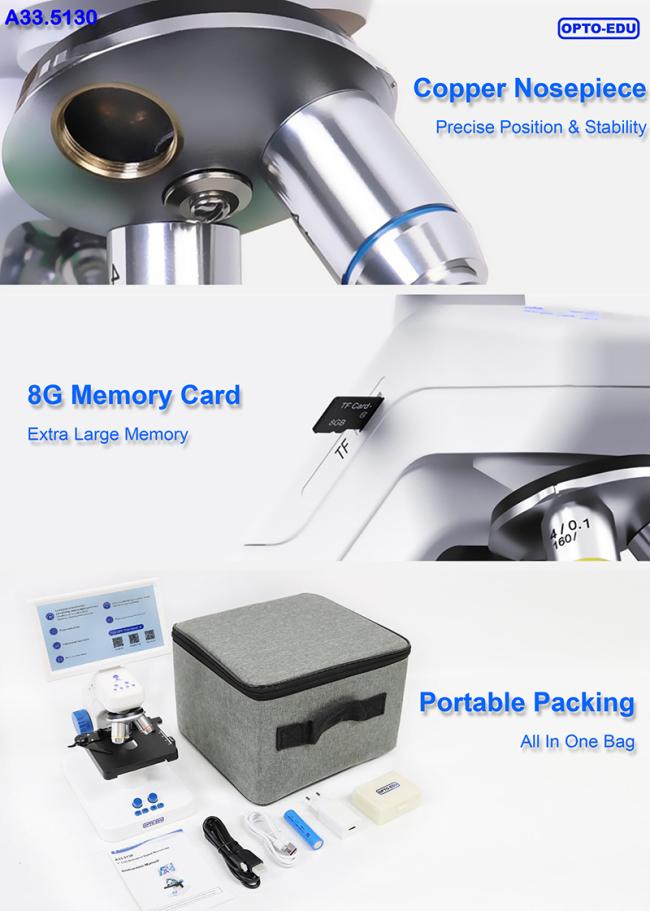

| Nosepiece | 3 Holes |

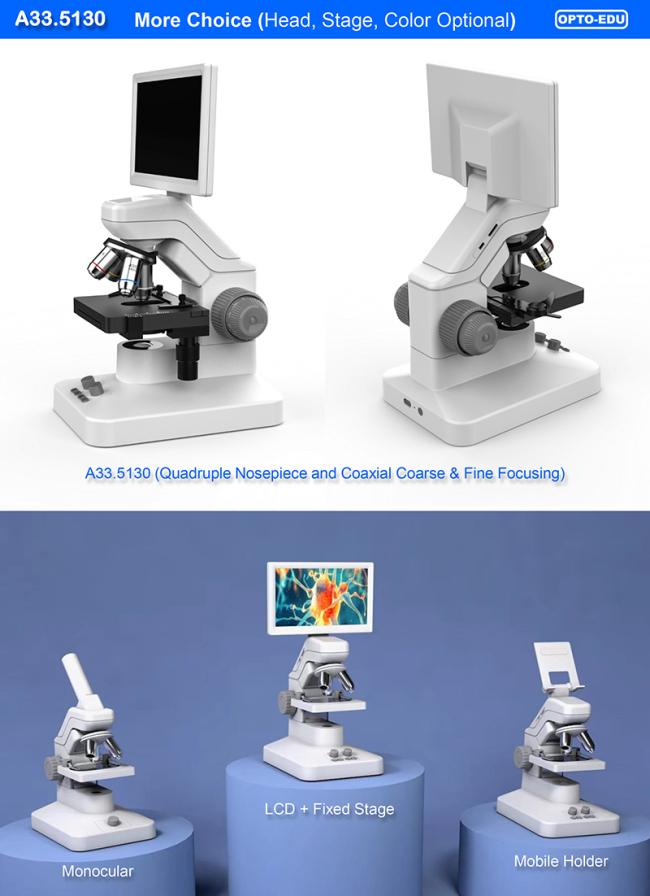

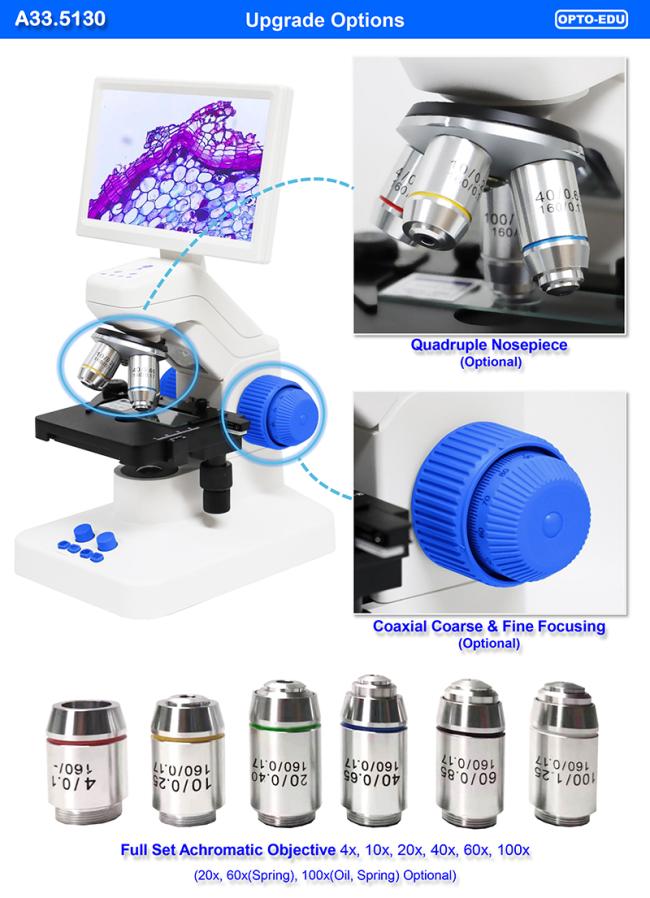

| 4 Holes (Optional) | |
| Objective | Achromatic 4x, 10x, 40x(Spring) High Contrast |
| Achromatic 20x, 60x(Spring), 100x(Oil, Spring) (Optional) | |
| Stage | Double Layer Mechanical Stage 95x105mm, Moving Range 20x50mm |

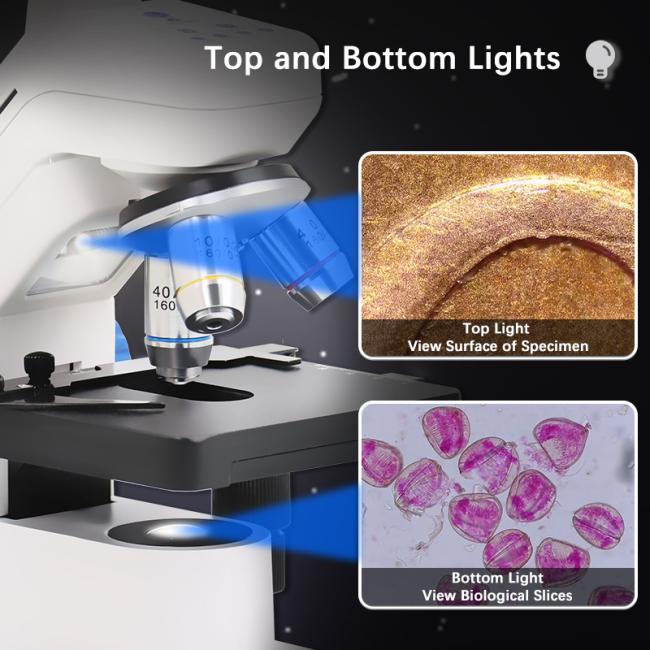

| Light | Upper & Bottom LED, Brightness Adjustable |
| Focusing | Coarse Focusing Knob, Focusing Range 8mm |
| Coaxial Coarse & Fine Focusing (Optional) | |

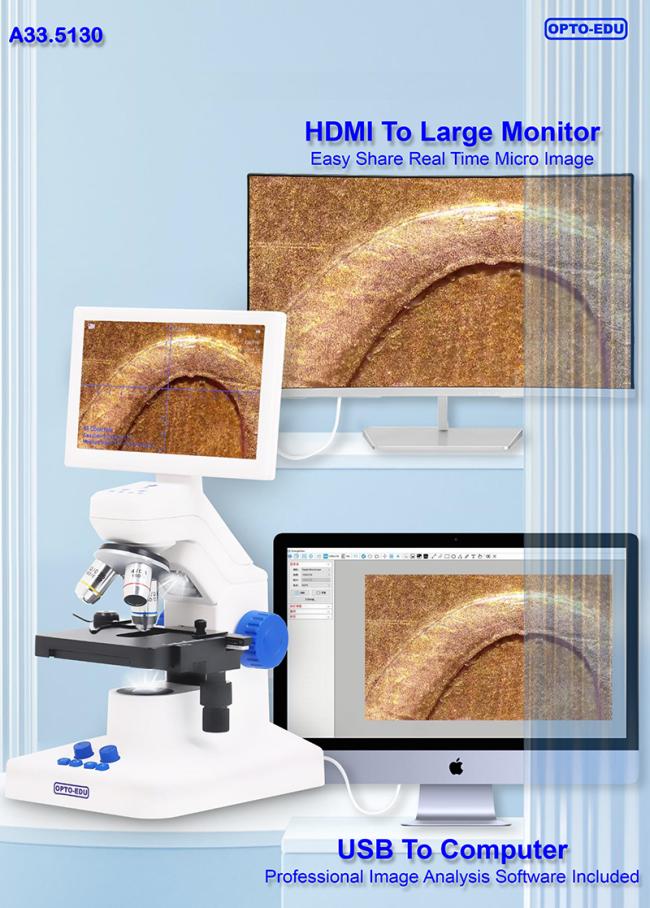

| Output | HDMI 1080p to TV |
| USB 2.0 to Computer, Support Win10, Win11, Measuring Software Strange view | |

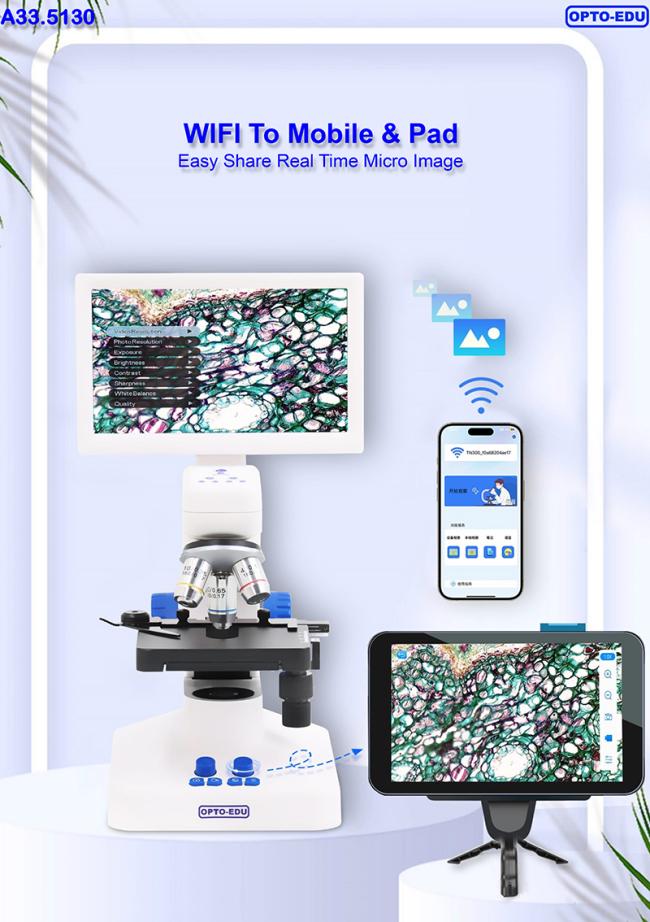

| WIFI to Android or IOS Mobile Phone And Tablet, APP T OX. | |

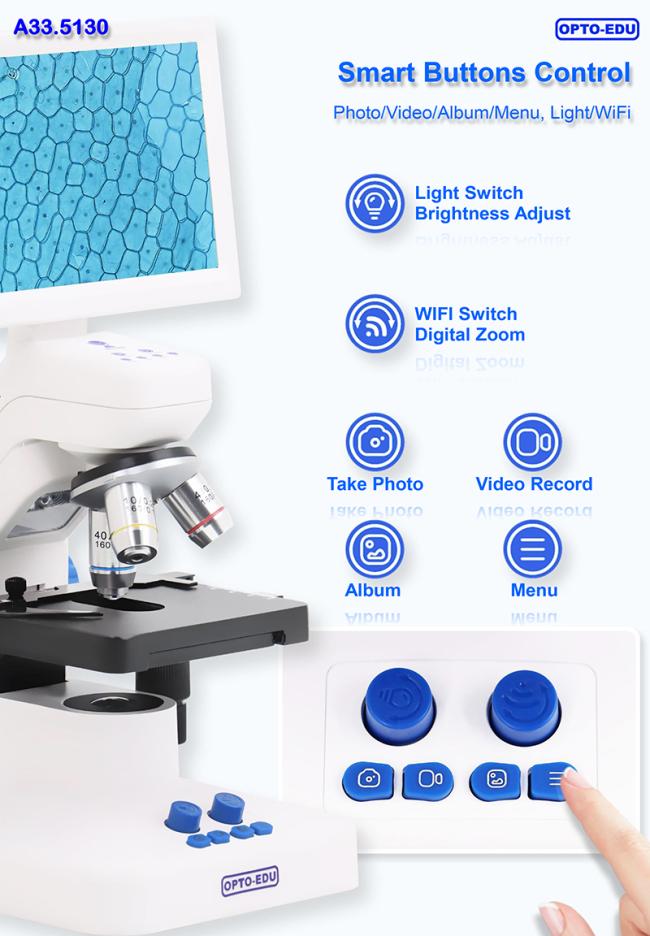

| Buttons | Buttons On Stand: Photo/Video/Album/Menu, Light Switch, WIFI Switch |
| Power | DC 5V 2A Adapter With Type C Cable |

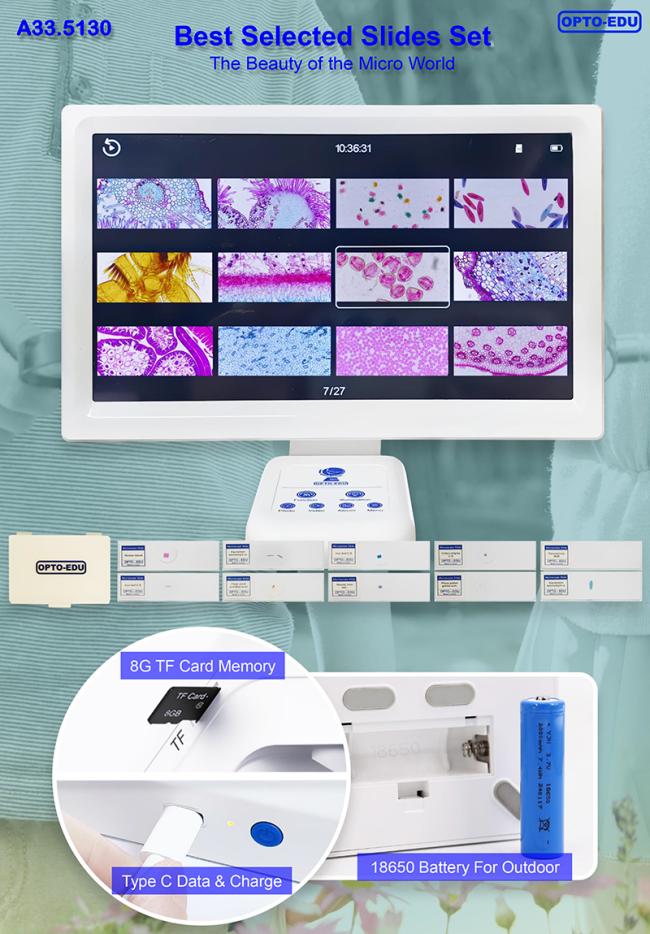

| Rechargeable Battery 18650 (NOT Included For Air Shipment) | |
| ECO | Auto Power Off Setting 1min, 3min, 5min, 10min etc. Available |

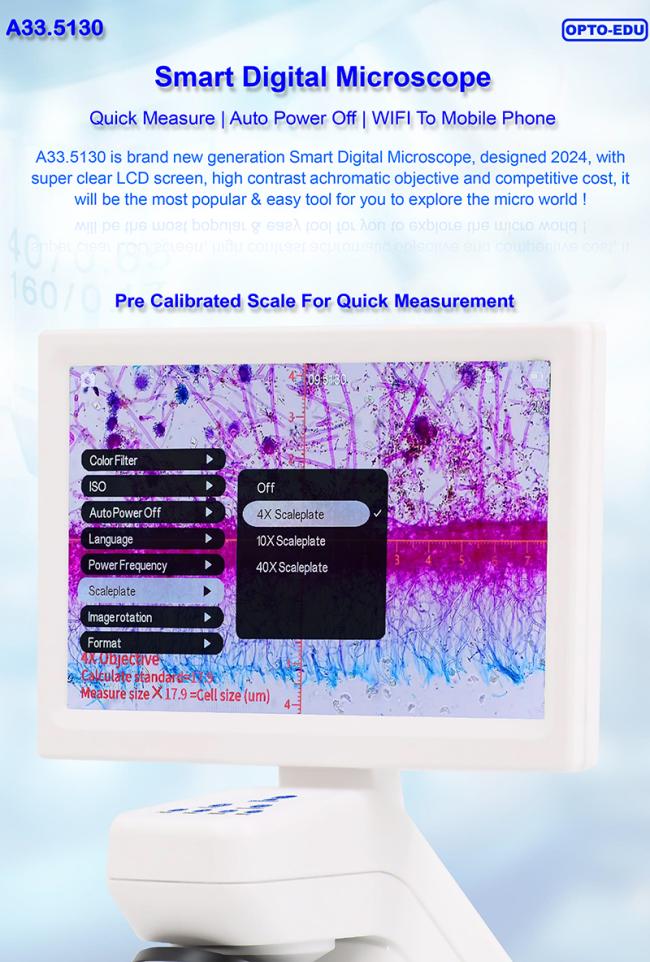

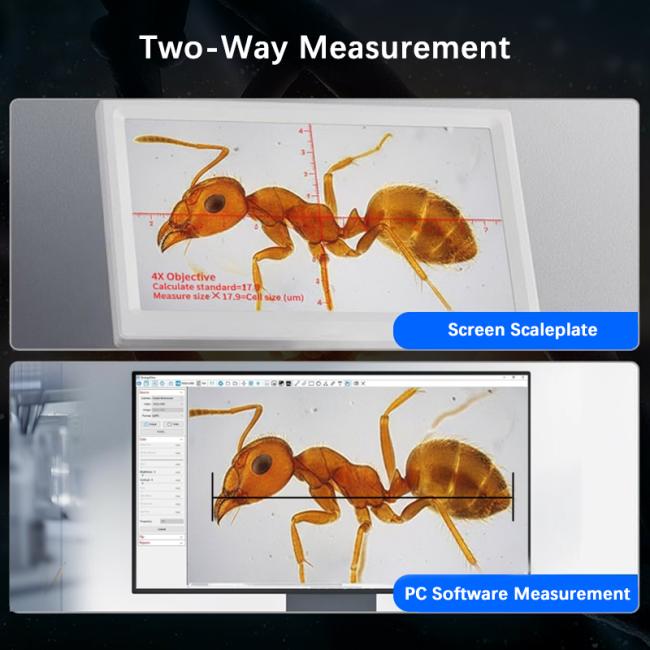

| Measure | Built-in Measuring Scale For 4x, 10x, 40x |
| Language | 11 Languages Supported |
| Size | 31*19*18cm |
