China Infinity Industry Monocular / Trinocular DIC Metallurgical Optical Microscope A13.0217 for sale

Infinity Industry Monocular / Trinocular DIC Metallurgical Optical Microscope A13.0217

Price Negotiable
Price: FOB $1~1000, Depend on Order Quantity
MOQ: 1 pc
Delivery Time: 5~20 Days
Brand: CNOEC, OPTO-EDU
Product Description

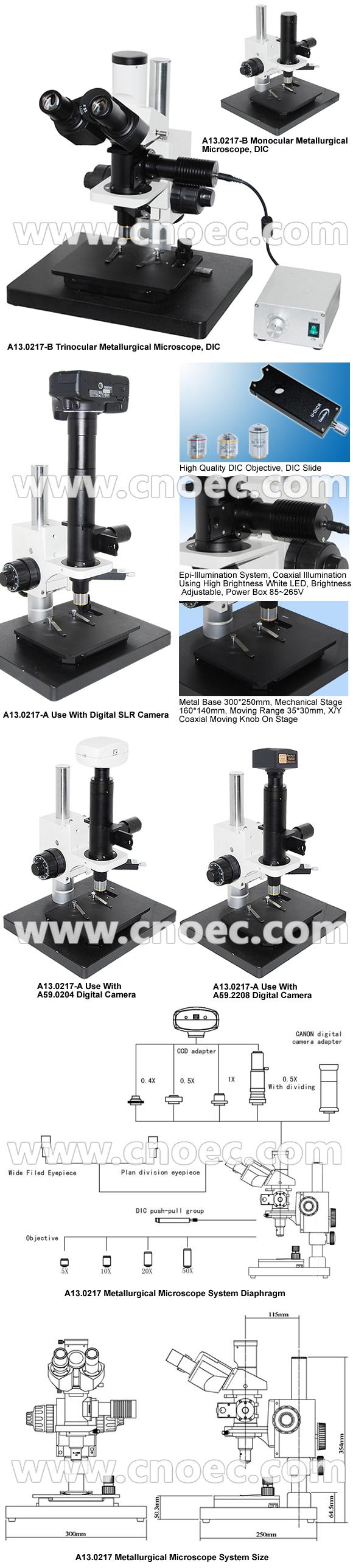

Infinity Industry Monocular / Trinocular DIC Metallurgical Optical Microscope A13.0217

A13.0217 DIC Metallurgical Microscope, used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.


--High Quality Infinity Opitcal System
--Monocular, Trincular Head Optional
--DIC Slide For 5x/10x/20x Objective
--Strainfree Infinity LWD Plan Achromatic 5x,10x,20x Optional
--Polarizing System, Switch In/Out Of Light Path





A13.0217 DIC Metallurgical Microscope
A
B
System Infinity Optical System, Total Magnification 100x
Mechanical Tube Length ∞
Objective Conjugate Distance∞
Head
 Monocular
o

Trinocular Head, 30° Inclined, Light Separate Ratio 80:20

o
Eyepiece

WF10x/18mm, Eyepiece Tube Dia.23.2mm, Parfocal Distance 10mm
Objective Strainfree LWD Infinity Plan Achromatic PL10x/0.25, W.D.20.2mm
Working Stage Double Layer Mechanical Stage 180*145mm, Moving Range 35*30mm
Focusing Coaxial Coarse & Fine Focus Knob, Tension Adjustable, Minimum Division 0.002mm, Height Adjustabout 133mm, Max Sample Height 130mm
DIC DIC Slide Match 5x/10x/20x Objectives, Horizontal Adjustable
Polarizing Polarizer, 360° Rotatable, Switch In/Out
Analyser, Switch In/Out
Light Source Coaxial Illumination, High Light LED, Brightness Adjustable
Power Wide Range Voltage 85~265V, 50/60Hz
Optional Accessories
Eyepiece WF15x/11mm A51.0203-16A
  WF20x/11mm A51.0203-20A
Objective Strainfree LWD Infinity Plan Achromatic PL5x/0.1,W.D.18.2mm A5M.0235-5A
Strainfree LWD Infinity Plan Achromatic PL20x/0.4,W.D.8.8mm A5M.0235-20
Adapter CCD Adapter 0.4x A55.0202-01
CCD Adapter 0.5x A55.0202-04
CCD Adapter 1.0x A55.0202-02
CCD Adapter 0.5x With Dividing 0.1mm/Divv A55.0202-03
Digital SLR Camera Adapter for Canon EF Series A55.0204-02
