Trinocular 0.7x - 6.3x Track Stand Zoom Stereo Optical Microscope A23.0203

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

Trinocular 0.7x - 6.3x Track Stand Zoom Stereo Optical Microscope A23.0203

Specification	A23.0203 Zoom Stereo Microscope
Head	Trinocular head,45° Inclined, Interpupillary Distance 55 ~ 75mm, ±5 Diopter Adjustment,Parfocal Distance 10mm
Eyepiece	Extra Wide Field, Plan WF10x/22mm, High Eyepoint, Eyepiece Tube Φ 30mm
Zoom Body	Zoom Range 0.7x ~ 6.3x, Zoom Ratio 1:9
Total Magnification	7x ~ 63x
Field Range	Φ33.8 ~ Φ3.49
Working Distance	110cm
Focusing Sytem	Track Stand, Coaxial Coarse & Fine Focusing Knob
Base	Size 310 x 280mm, With Specimen Clips
Vertically Effective Movement Range	220mm

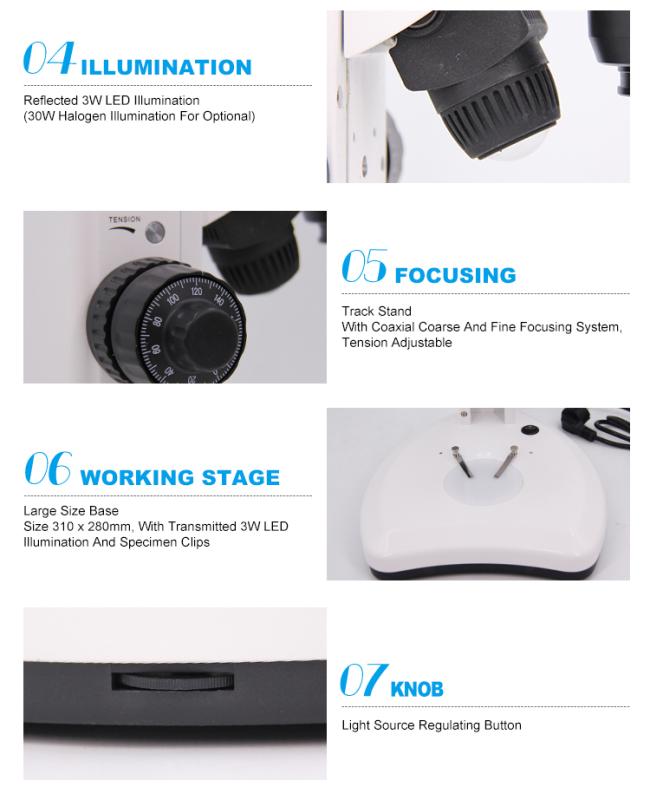

Illumination	High Brightness, Reflected 3W LED & Transmitted 5W LED, Brightness Adjustable, (Both 30W Halogen Lamp For Optional)
	Ring Fluorescent Illuminator (For Optional)
	Epi - LED Fluorescent Illuminator (For Optional)
Power Supply	Input 85V~265V 50/60Hz, Output 12V
A23.0203 Zoom Stereo Microscope Optional Accessories		Item No.
Eyepiece	WF15x/15mm
	WF20x/12mm
	WF25x/9mm
	WF10x/22mm, Dividing Eyepiece
Auxiliary Lens	0.5x, Total Magnification 3.5x ~ 31.5x, W.D. 165mm
	1.5x, Total Magnification 10.5x ~ 94.5x
	2x, Total Magnification 14x ~ 126x
Fluorescent Illuminator	Epi - LED Fluorescent Illuminator (B,G),3W LED Power Supply	A5F.0201-5
	Epi - LED Fluorescent Illuminator (B,G,UV,V),3W LED Power Supply	A5F.0201-6
	Ring Fluorescent Illuminator
Camera Adaptor	0.4x, C-Mount
	0.5x, C-Mount
	1x, C-Mount
	0.5x, C-Mount With Dividing
	Digtial Camera CANON (EF) / NIKON (F)
