Monocular 40x - 640x Industrial Metallurgical Optical Microscope With Plan Objective A13.0301

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

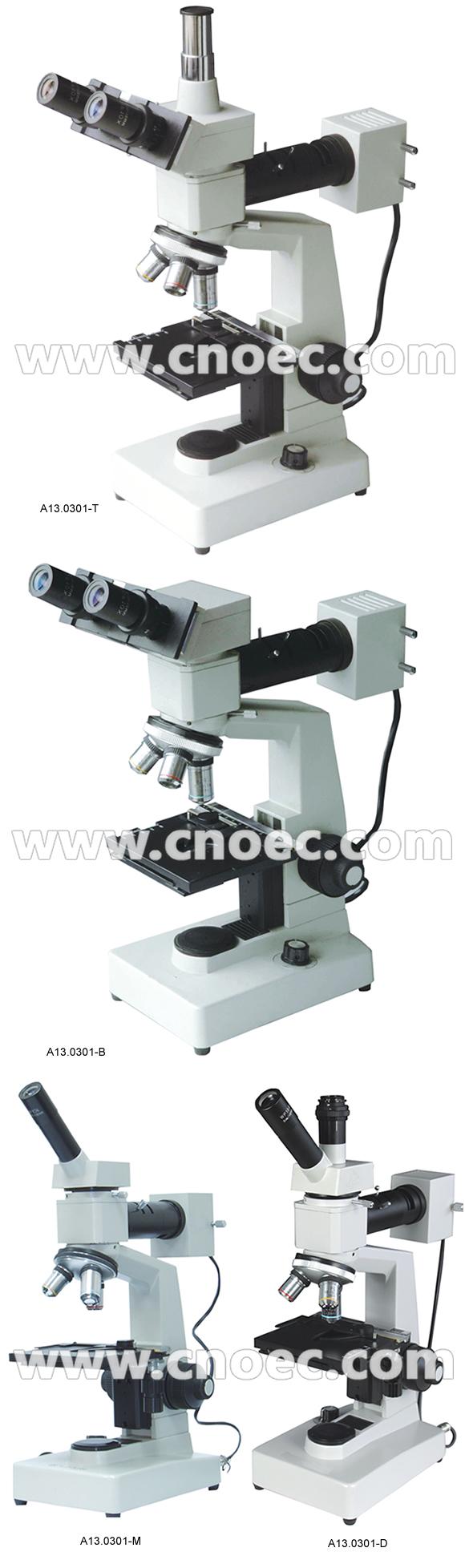

Monocular 40x - 640x Industrial Metallurgical Optical Microscope With Plan Objective A13.0301

A13.0301is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected system, Metallurgical Plan objectives with long working distance, wide-field eyepieces. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. Features
--Compact and steady main frame body is embodiment for the shock resistance.
--Ideal ergonomic design is adopted in this unit and have easier operation and wider space

Specification	A13.0301 Metallurgical Microscope	M	D	B	T
Head	Monocular Head, inclined 45°, rotatable 360°	●
	Dual Viewing Head, inclined 45°, rotatable 360°		●
	Binocular Head, inclined 30°, interpupillary distance 55-75			●
	Trinocular Head, inclined 30°, interpupillary distance 55-75				●
Eyepiece	WF10x/18mm
Eyepiece	WF16x/11mm
Nosepiece	Triple
Objective	Metallurgical Plan (without cover glass) 4x/0.1
	Metallurgical Plan (without cover glass) 10x/0.25
	Metallurgical Plan (without cover glass) 40x/0.65(S)
Stage	Mechanical stage size 130x122mm, moving range 70x30mm, minimum vernier division 0.1mm
Condenser	N.A.1.25 Abbe condenser, up/down range 15mm
Focusing	Coaxial coarse & fine focusing knob, coarse focusing range 40mm, fine focusing division 0.002mm
Filter	Blue filter , Green filter
Light Source	Upright vertical illumination 6V 20W Halogen lamp, brightness adjustable
Optional Accessories			Item No.
Eyepiece	WF12.5x/15mm		A51.0301-12.5
Eyepiece	WF20x/11mm		A51.0301-20
Objective	Metallurgical Plan (without cover glass) 63x (S)		A52.0311-63
Objective	Metallurgical Plan (without cover glass) 100x(O,S)		A52.0311-100
Adapter	CCD adapter		A55.0302
	Photo adapter		A55.0301
	Digital camera adapter		A55.0303
Light	Transmitted light source 6V 20W halogen lamp		A56.0303
