Binocular Industrial Metallurgical Optical Microscope with Large mechanical stage A13.0302

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

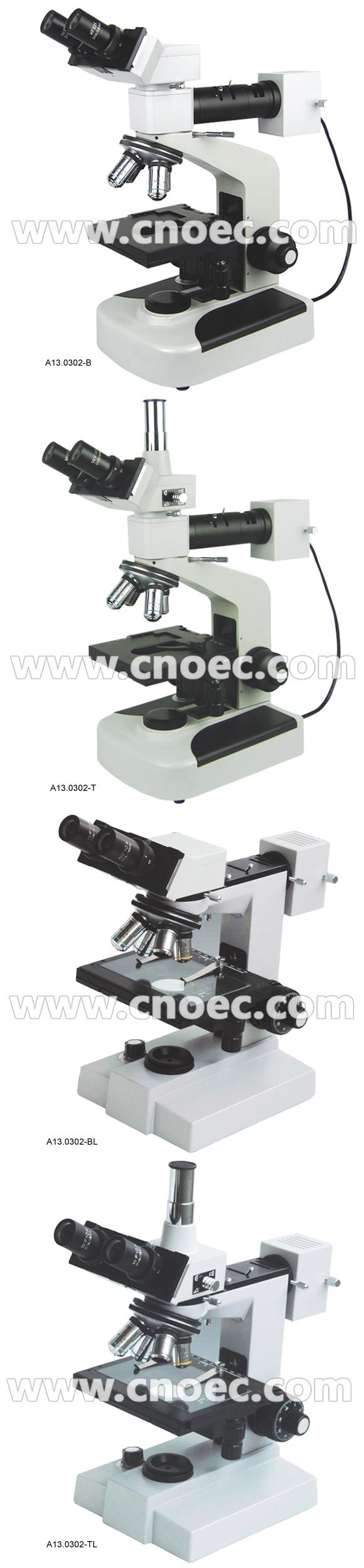

Binocular Industrial Metallurgical Optical Microscope with Large mechanical stage A13.0302

A13.0302is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected system, Metallurgical Plan objectives with long working distance, wide-field eyepieces. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. Features
--Compact and steady main frame body is embodiment for the shock resistance.
--Ideal ergonomic design is adopted in this unit and have easier operation and wider space

--Large mechanical stage size 160x130mm

Specification	A13.0302 Metallurgical Microscope	B	T	BL	TL
Head	Binocular Head, inclined 30°, interpupillary distance 55-75mm	●		●
Head	Trinocular Head, inclined 30°, interpupillary distance 55-75mm		●		●
Eyepiece	WF10x/18mm
Eyepiece	WF16x/11mm
Nosepiece	Quadruple nosepiece
Objective	Metallurgical Plan (without cover glass) 4x/0.1
	Metallurgical Plan (without cover glass) 10x/0.25
	Metallurgical Plan (without cover glass) 40x/0.65(S)
	Metallurgical Plan (without cover glass) 63x/0.85(S)
Stage	Mechanical stage size 140x140mm, moving range 70x50mm, minimum vernier division 0.1mm	●	●
Stage	Large mechanical stage size 160x130mm, moving range 76x50mm, minimum vernier division 0.1mm			●	●
Condenser	N.A.1.25 Abbe condenser, up/down range 15mm
Focusing	Coaxial coarse & fine focusing knob, coarse focusing range 10mm, fine focusing division 0.002mm
Filter	Blue filter , Green filter
Light Source	Epi-illumination 6V 20W Halogen lamp, brightness adjustable
Optional Accessories			Item No.
Eyepiece	WF12.5x/15mm		A51.0301-12.5
Eyepiece	WF20x/11mm		A51.0301-20
Objective	Metallurgical Plan (without cover glass) 20x (S)		A52.0311-20
Objective	Metallurgical Plan (without cover glass) 100x(O,S)		A52.0311-100
Adapter	CCD adapter		A55.0302
	Photo adapter		A55.0301
	Digital camera adapter		A55.0303
Light	Transmitted light source 6V 20W halogen lamp		A56.0303
