7x-45x Binocular / Trinocular Jewelry Microscope With Zoom Ratio1 / 9 A24.0301

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

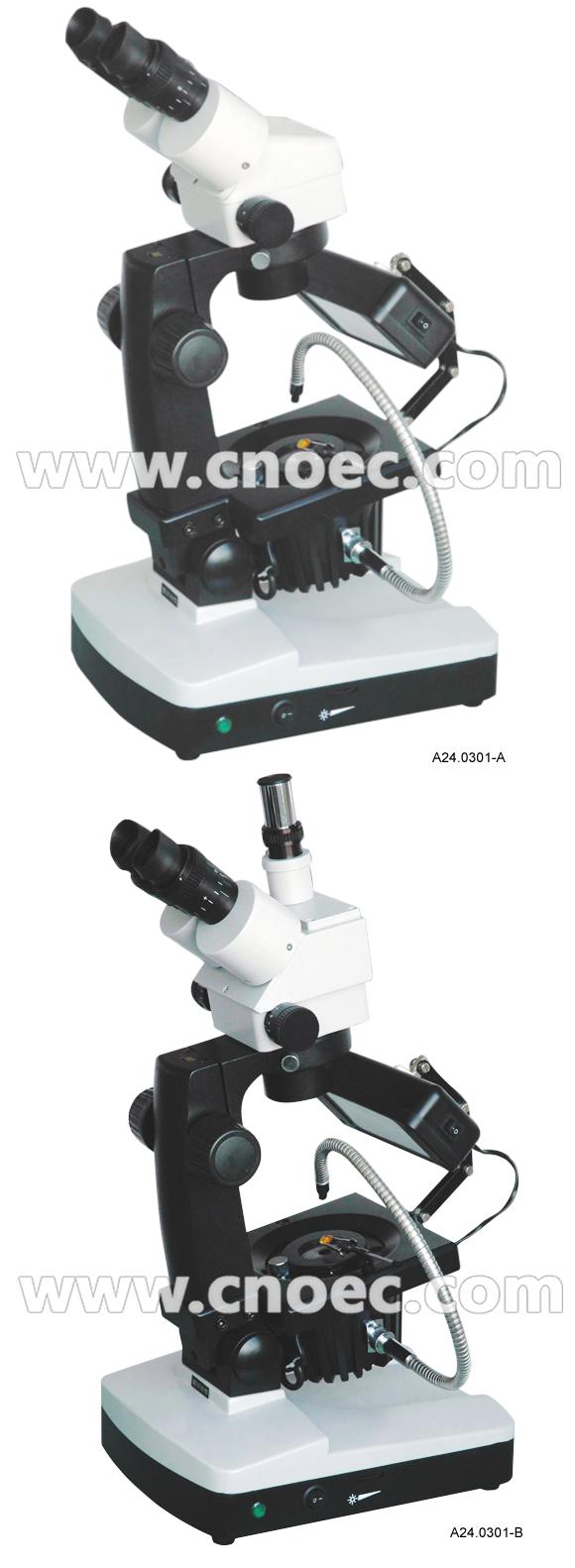

7x-45x Binocular / Trinocular Jewelry Microscope With Zoom Ratio1 / 9 A24.0301

A24.0301 Gem Microscope, with high definition and high resolution rate of solid image, providing special clamp to hold gem conveniently, the inside crystal structure of gem can be shown clearly under 6000K light source, it is very suitable for prefessional gem and diamond checking field.

Specification	A24.0301	A	B
Head	Binocular head,interpupillary distance 55-75mm	●
	Trinocular head,interpupillary distance 55-75mm		●
Total Magnification	7x-45x
Eyepiece	Super WF10x/23mm eyepiece
Objectives	Zoom objective 0.7x-4.5x
Body	Body can be inclined 45° for comfortable operating
Gem clamp	Alligapor clamp, steel clamp, plat clamp included
Condenser	Auxiliary lens optional : 0.75x (W.D.105mm), 1.5x(W.D.47mm), 2x(33mm)
Focus	Focusing range 125mm, working distance 95mm
Illumination	Bright/Dark field illuminator, with iris adjustable 2-41mm, 8W 6000K fluorescent lamp
