China Vertical Monocular Head Biological Microscope with 5 holes diagram Condenser A11.0306 for sale

Vertical Monocular Head Biological Microscope with 5 holes diagram Condenser A11.0306

Price Negotiable
Price: Negotiation
MOQ: 1 pc
Delivery Time: 5~20 Days
Brand: CNOEC, OPTO-EDU
Product Description

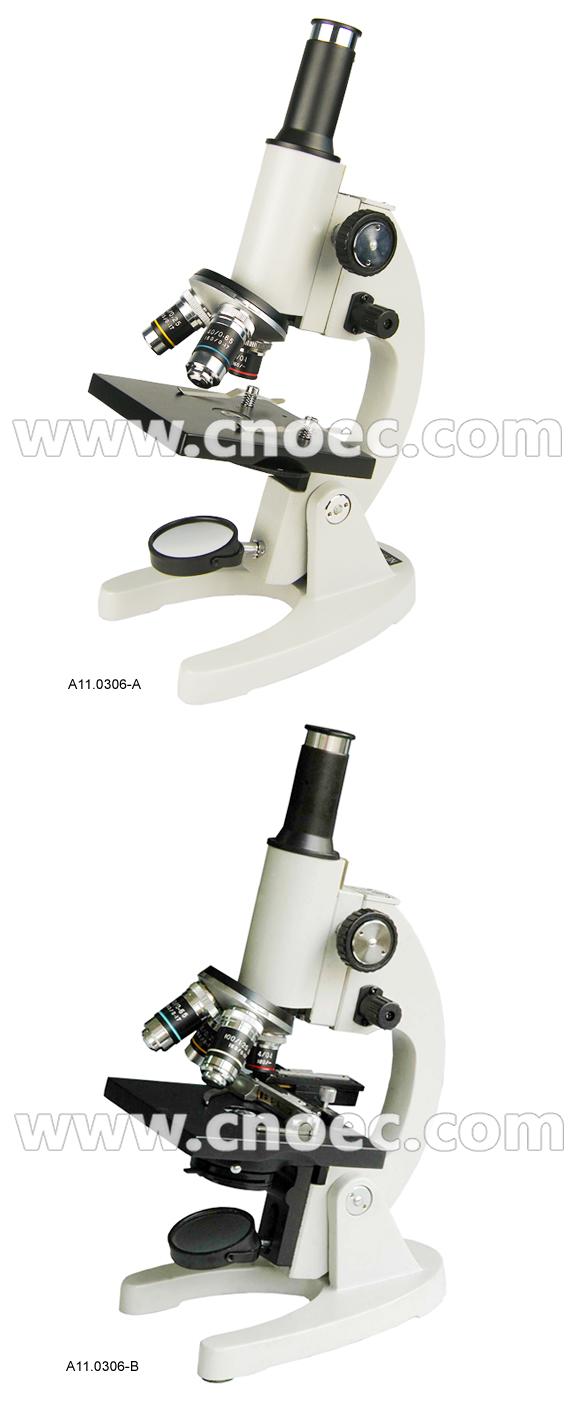

Vertical Monocular Head Biological Microscope with 5 holes diagram Condenser A11.0306





A11.0306 Student Microscope,  an ideal tool or gift scope for children and student, with full accessoreis kit all in one..
--40x~1600x Magnification
--Full Metal Body for Steday Observation
--Compact All in One Design for Easy Moving



Specification
A11.0306 Biological Microscope
A
B
Head
 Vertical Monocular Head
Eyepiece

H10x
H16x
Nosepiece Triple
●

Quadruple

●
Objective Achromatic Objective 4x/NA 0.1
Achromatic Objective 10x/NA 0.25
Achromatic Objective 40x(s)/NA 0.65
Achromatic Objective 100x(s,oil)/NA.1.25
●
Stage Fixed stage size 115x125mm,stage with clip
●

Fixed stage size 115x125mm, moving scale,moving range:60x30mm, minimum vernier division 0.1mm

●
Condenser N.A.0.65 with 5 holes diagram
●

N.A.1.25 Abbe condenser, up/down range 15mm

●
Focusing Coaxial coarse & fine focusing knob, coarse focusing range 35mm, fine focusing division 0.002mm
Filter Blue filter , Yellow filter, Ground glass
Light Source Plano-Concave mirror: Φ 50mm
