Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700
Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700
Description:
A13.2700 Metallurgical Microscope, with flexible system, excellent imaging performance and stable system achritecure. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.
--Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
--Accessories Complete, Well Equipped, The System Can be Flexibly Combined
--Ergonomic Design, Reliable System Architecture
|
Specification
|
---------------A13.2700-A ----------------------------------------A13.2700-B------------------
|
||
|---|---|---|---|
| Head |

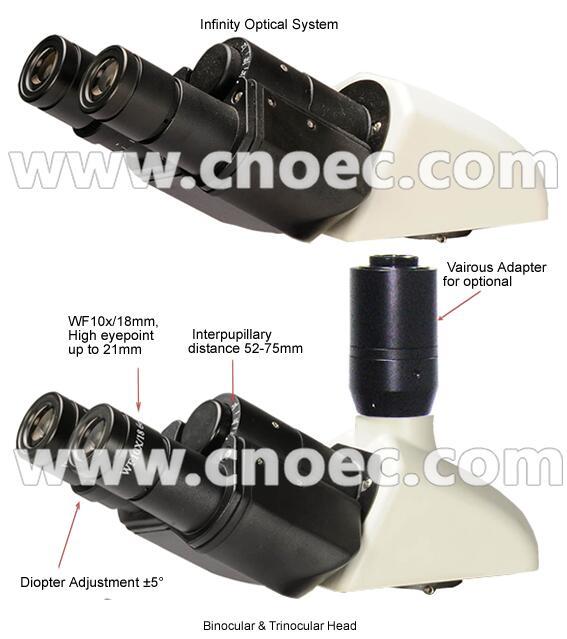

Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment |
Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment | |
| Eyepiece | Plan WF10x/18mm, High Eyepoint Up To 21mm | ||
| Objective |
Infinity LWD Plan Achromatic Objective 10x, 20x(S), 50x/(S),80x (S) |
||
| Focus System |
Low Positioned, Coaxial Coarse & Fine Focusing System With An Adjustable Tension Control And Upper Limit Stop, Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1mm On Left-Side Fine Knob, Moving Range 20mm |
||
| Nosepiece |
Quadruple,Reversed Type With Positive Click Stops |
||
| Stage |
Mmechanical Stage (For Refected Illumination), Size 142x135mm, Moving Range 76x52mm. Low Position, Right Hand Control, X-Y Coaxial Control Knob |
||
| Polarization | With Polarizer (Reflected) & Analizer | ||
| Illumination | Reflected, Halogen 12V50W, With Polarizer & Analizer | ||
| Power Supply | 100-240V Wide Power Range, CE certified | ||
| Adapter |
1x C-Mount
|
||
|
A12.2700 Metallurgical Microscope Optional Accessories
|
Item No.
|
||
| Head |
Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment |
A53.2702-3A |
|
| Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment |
A53.2704-3A |
||
| Eyepiece |
WF10x/20mm, Plan, High Eyepoint Up To 21mm |
A51.2701-10B |
|
|
WF16x/13mm,Plan |
A51.2701-1613 |
||
|
WF10x/18mm, Plan, With Pointer |
A51.2702-10 |
||
|
WF10x/18mm Plan, Reticule Eyepiece |
A51.2703-10 |
||
|
Objective |
Infinity LWD Plan Achromatic 5x |
A5M.2731-05 |
|
| Nosepiece |
Upgrade To Quintuple,Reversed Type With Positive Click Stops |
A54.2705-A1 |
|
| Adapter | 1.0x C-Mount |
A55.2701-10 |
|
| 0.5x C-Mount |
A55.2701-05 |
||
| 0.25x C-Mount |
A55.2701-25 |
||
|
For Digital Eyepiece (To Be Used On Trinocular Tube) |
A55.2701-8 | ||
| Digital Camera Adapter, (Need To Know Camera Model) |
A55.2702-2 |
||
