1/2.8" Sony CMOS Lcd Digital Microscope Camera 12.5" 1080p HDMI 2.0M A59.4950
LCD Digital Microscope Camera, 12.5", 1080p HDMI, 2.0M A59.4950

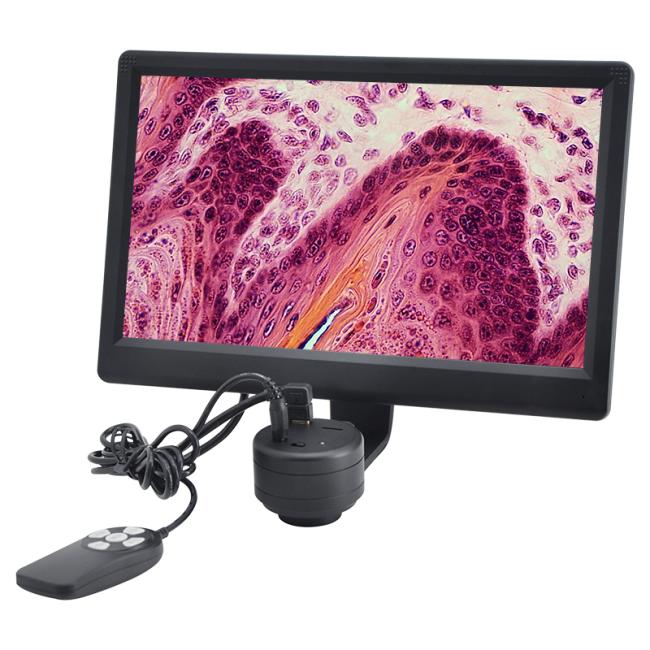

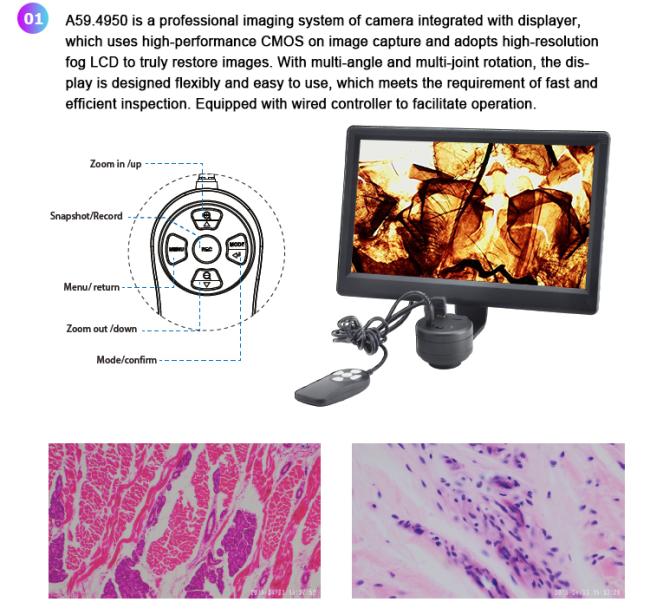

A59.4951 is a professional imaging system of camera integrated with displayer,which uses high-performance CMOS on image capture and adopts high-resolution fog LCD to truly restore images.With multi-angle and multi-joint rotation,the display is designed flexibly and easy to use,which meets the requirement of fast and efficient.Equipped with wired controller to facilicate operation.

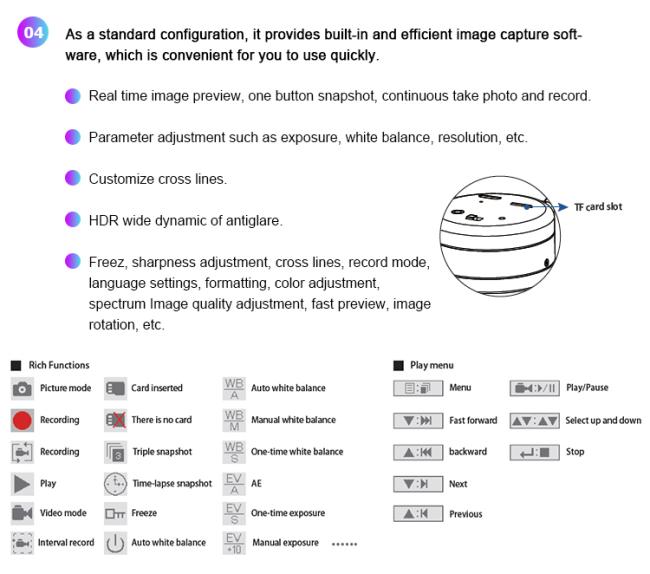

As a standard configuration, it provides built-in and efficient image capture software, which is convenient for you to use quickly.
♦ HDMI 2.0MP HD Preview And Snapshot
♦ Remarkable Color Reduction

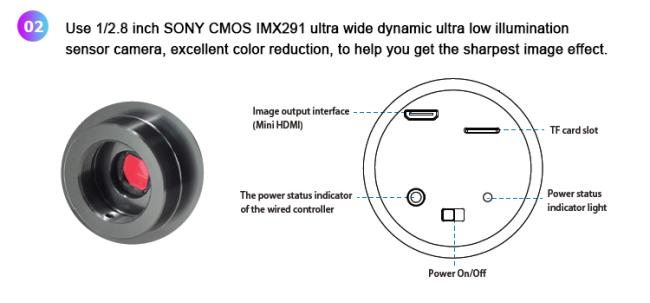

♦ High Dynamic Range And High Sensitivity SONY CMOS
♦ Standard C-mount,External Camera System
♦ Equipped With 12.5" HD 1080P Displayer

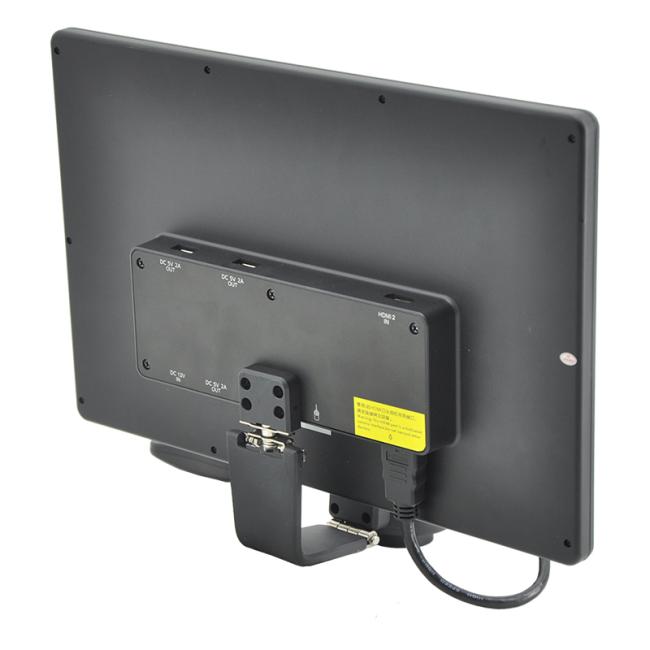

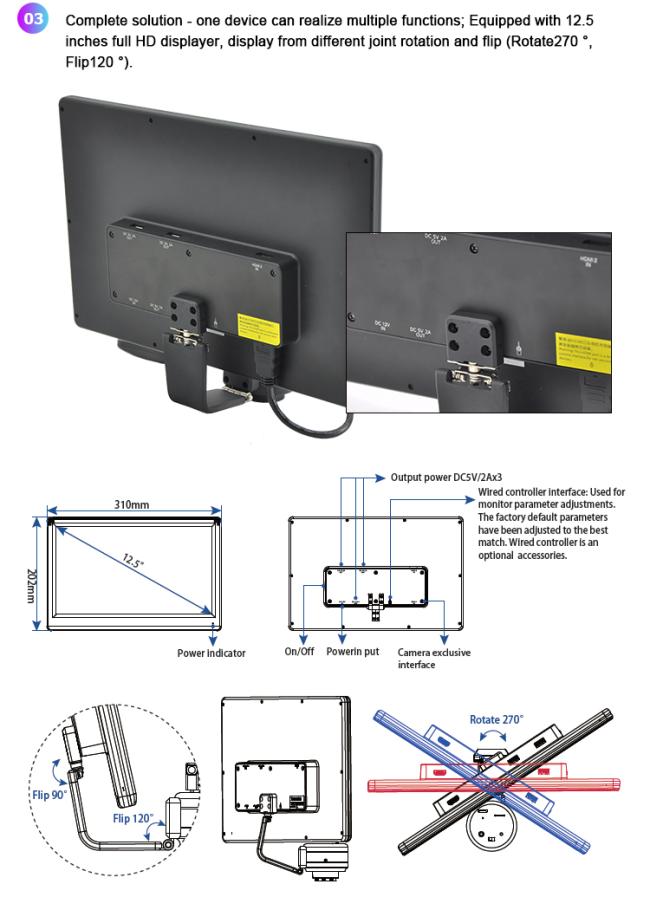

♦ The Displayer Rotatable At Multiple Angles And Joints
| A59.4950 Integrated Screen Camera, Professional Imaging System | |||||||
| Camera specifications | |||||||
| Image Sensor | SONY CMOS IMX291Super Wide Dynamic CMOS Sensor | ||||||
| Expose Mode | Rolling Shutter | ||||||
| Maximum Resolution | 1920 x 1080 (2,073,600 pixels) | ||||||
| Sensor Optical Format | 1/2.8'' (6.058mm(H) x 4.415mm(V)) | ||||||
| Pixel Size | 2.9μm x 2.9μm | ||||||
| Dynamic Range | 128dB | ||||||
| SNR(Signal Noise Ratio) | 30dB | ||||||
| Spectral Characteristics | 380~650nm | ||||||
| Exposure Capability | Real-time Auto, Single Auto, Manual Adjustment | ||||||
| White Balance | Real-time Auto, Single Auto, Manual Adjust RGB Seperately | ||||||
| Display (preview)Resolution | HDMI:1920X1080P60 | ||||||
| Record Format | Snapshot Picture Format:JPG Resolution:1920x1080 Record Video Format:MOV Resolution:1920X1080P30,1280x720P60 |
||||||
| Record Route | TF Card(Maximum Support 128G,Support Hot Plug ) | ||||||
| Camear Interface Parameter | |||||||
| Camear Interface | C mount Thread(1＂×1/32) | ||||||
| Image Output Interface | HDMI TYPE C(Mini HDMI) | ||||||
| Monitor Parameters | |||||||
| Size | 12.5” | ||||||
| Type | a-Si TFT-LCD/IPS | ||||||
| Resolution | 1920x1080 | ||||||
| Color Display | 16.7M | ||||||
| Brightness | 300 Nit | ||||||
| Contrast | 800:1 | ||||||
| Visible Angle | 170° Horizontal & Vertical | ||||||
| Power Supply | Adapter: Input:AC100~240V/50~60Hz；Output:DC12V/5A/60W | ||||||
| Monitor:USB-A-Output:DC5V/2A×3 | |||||||
| Image Input Interface | HDMI1,HDMI2 | ||||||
