Optical 20x 40x Binocular Stereo Microscope Sunshine Student Boom Stand Inspection Electron Pcb Repair

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

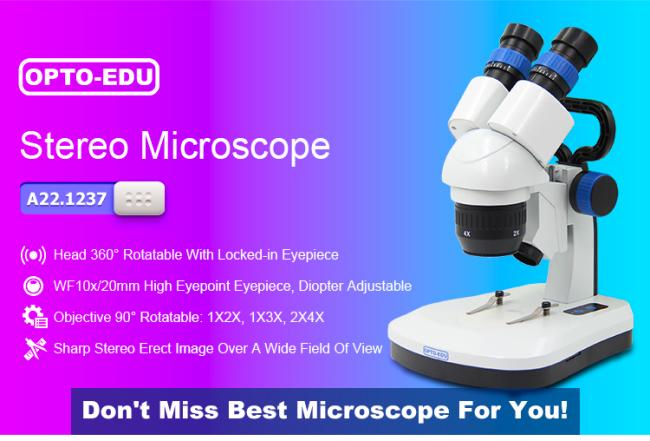

OPTO-EDU Cheap Student Boom Stand Inspection Electron Pcb Repair Optical 20x 40x Binocular Stereo Microscope Sunshine

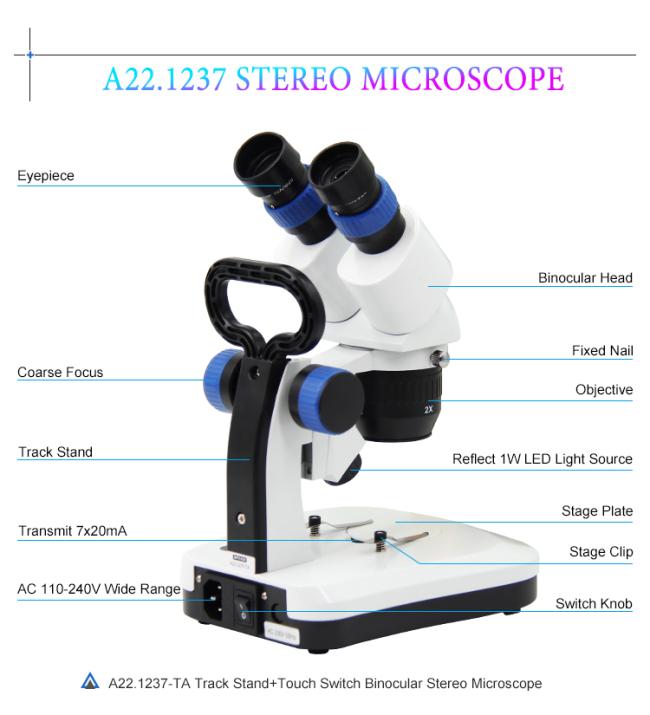

Stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A22.1237 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.

Model	P	PA	PB	TA	TB
Head	Rotatable 360°, Inclination 45° Binocular, With Locked-in Eyepiece, Left & Right Diopter Adjustable ±5°, Head Interpupillary 55-75mm
Eyepiece	WF10X
Objective	Three Kind Of Objective 90° Rotatable For Selection: 1X2X, 1X3X, 2X4X
Light Source	No Light Source	Reflect 1WLED, Transmit 7x20mA
Stand	Pole Stand	Pole Stand Touch Switch	Pole Stand Dial Switch	Track Stand Touch Switch	Track Stand Dial Switch
Working Stage	Φ60 White/Black And Φ60 Frosted Glass
Power Supply	AC 100V-240V Wide Range, CE Approval

Optional Accessories
Eyepiece	WF5X
	SWF10X
	WF15X
	WF20X

Objective Magnification	Magnification	Field Of View(mm)	Magnification	Field Of View(mm)	Magnification	Field Of View(mm)	Magnification	Field Of View(mm)	Working Distance(mm)
1X	5X	20	10X	20	15X	15	20X	10	76
2X	10X	10	20X	10	30X	7.5	40X	6.5	76
3X	15X	7	30X	6.7	45X	5	60X	4.3	76
4X	20X	5	40X	5	60X	3.7	80X	3.2	76
