Large Diameter Quintuple Trinocular Inverted Microscope 6V 30W Koehler Illumination

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

OPTO-EDU A14.2603 Trinocular Phase Contrast Inverted Biological Microscope

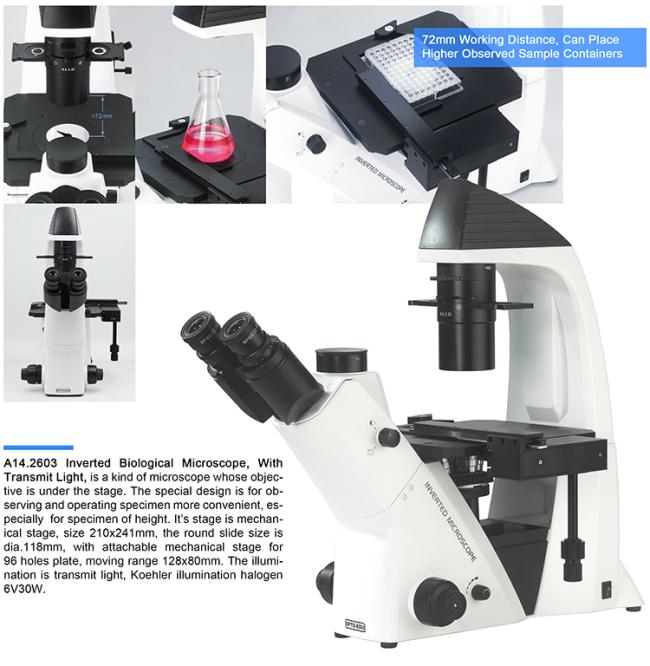

A14.2603 Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.

A14.2603 Inverted Microscope Specification
Head	Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 48~76mm
Head	Light Split (Both) 100:0 and 80:20

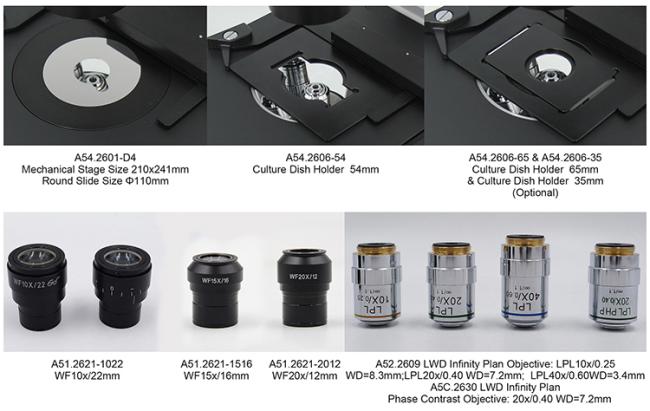

Eyepiece	WF10x/22mm, Diopter Adjustable
Nosepiece	Large Diameter Quintuple
Objective	LWD Infinity Plan Objective
	LPL10x/0.25 WD=8.3mm
	LPL20x/0.40 WD=7.2mm
	LPL40x/0.60 WD=3.4mm
	LWD Infinity Plan Phase Contrast Objective
	20x/0.40 WD=7.2mm
Focus System	Low Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm
Stage	Mechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm, Knob Can Be Changed By Left Or Right

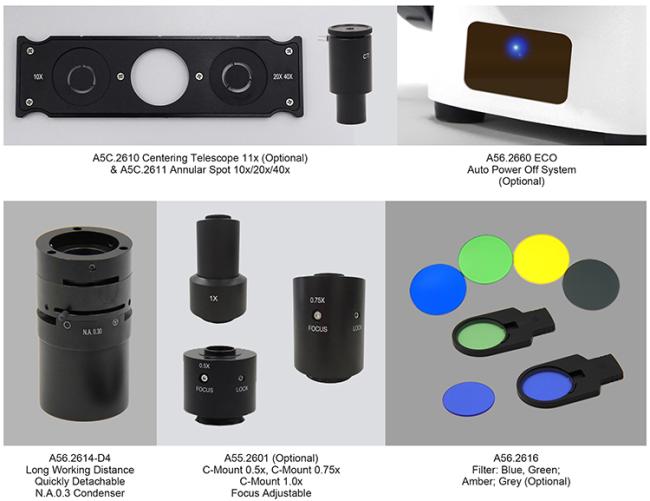

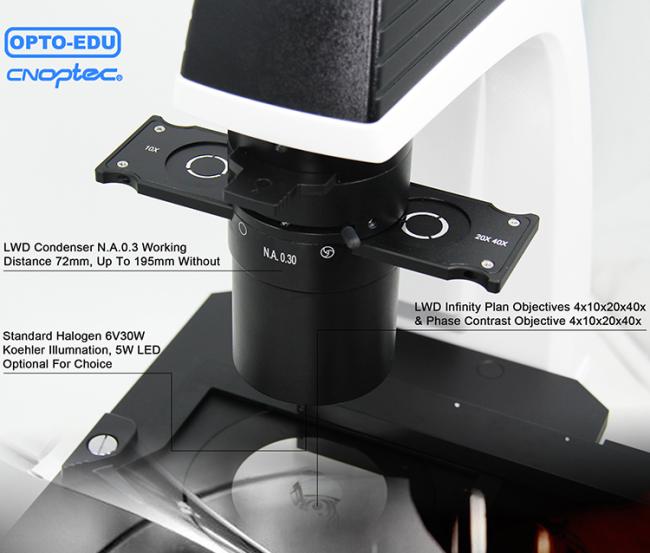

Condenser	Long Working Distance, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable
Phase Contrast	Phase Contrast Annular Plate For 20x/40x
Filter	Blue, Green
Light Source	Transmit Light, Halogen 6V30W, Koehler Illumination
Power Supply	Wide Range Voltage 110~240V
