5.0m 12m 20mm Wireless Digital Microscope Handheld Opto Edu

Price Negotiable

Price: FOB $1~1000, Depend on Order Quantity

MOQ: 1 pc

Delivery Time: 5~20 Days

Brand: CNOEC, OPTO-EDU

Product Description

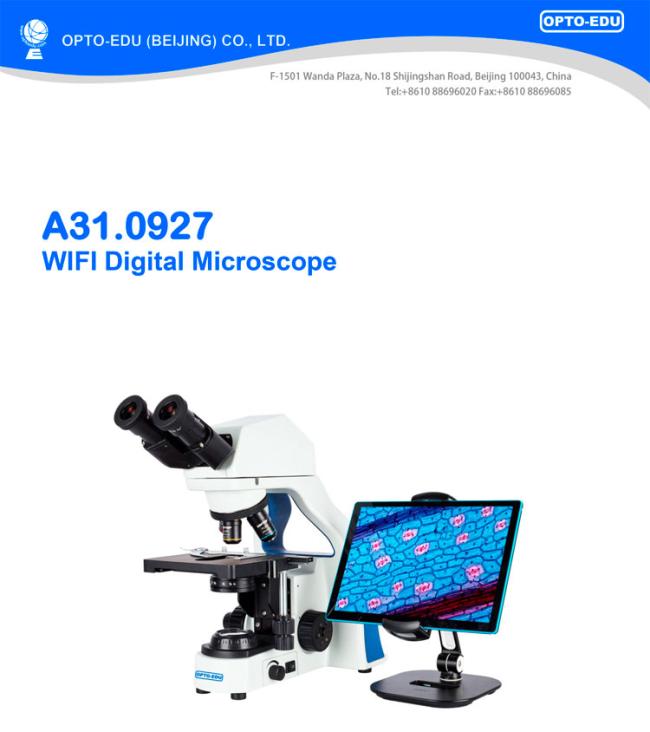

WIFI Digital Biological Microscope, 5.0M, 12M

Binocular Head, Built-in WIFI Camera, 5MP/12MP
Infinity Color Corrected Optical System
30° Inclined, Gemel Binocular Head, Interpupillary Distance 47mm-75mm
N.A.1.25 Compound Eye Illumination Condenser Group (With Plug-in Phase Contrast And Dark Field Accessories' Interface)
150mmx140mm Mechanical Stage, Moving Range:76mm-50mm, Precision 0.1mm (Triangular Guide Rail)

A31.0927		5M	12M
Head	Binocular Head, Built-in WIFI Camera, 5MP.	●
	Binocular Head, Built-in WIFI Camera, 12MP.		●
Optical system	Infinity Color Corrected Optical System	●	●
Viewing Head	30° Inclined, Gemel Binocular Head, Interpupillary Distance 47mm-75mm.	●

Eyepiece	PL10x/20mm	●	●
Nosepiece	Reversed Quadruple Nosepiece	●	●
Objective	Plan Achromatic Objective 4x/0.10, WD=11.9mm	●	●
	Plan Achromatic Objective 10x/0.25, WD=12.1mm	●	●
	Plan Achromatic Objective 40x/0.65, WD=0.36mm	●	●
	Plan Achromatic Objective 100x/1.25, WD=0.18mm	●	●
Focusing Mechanism	Low Position Coaxial Focusing Mechanism, Coarse Range: 25mm, Fine Precision: 0.002mm, With Tension Adjustment And Upper Limit	●	●
Working Stage	150mmx140mm Mechanical Stage, Moving Range:76mm-50mm, Precision 0.1mm (Triangular Guide Rail)	●	●
Illumination	N.A.1.25 Compound Eye Illumination Condenser Group (With Plug-in Phase Contrast And Dark Field Accessories' Interface), Condenser Preset Center, Adaptive 100V-240V Switching Power Supply, Single High Brightness 3W LED Light Intensity Can Be Continuously Adjusted	●	●
