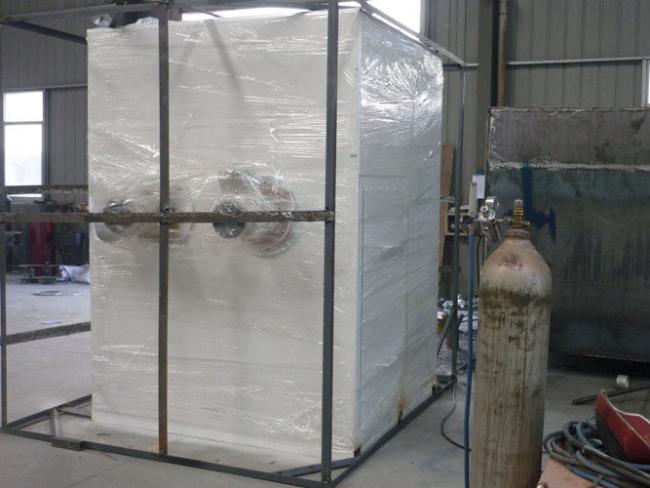

China 1 / 1.2 mpa Gas Air Separation Unit With Low Pressure Liquid Oxygen And Nitrogen for sale

1 / 1.2 mpa Gas Air Separation Unit With Low Pressure Liquid Oxygen And Nitrogen

Price Negotiable

Price: Negotiation

MOQ: 1 SET

Delivery Time: 4-5 MONTHS

Brand: UIG

Product Description

1 / 1.2 mpa Gas Air Separation Unit With Low Pressure Liquid Oxygen And Nitrogen

Two compression methods:

1)Internal compression air separation plants:
Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen

vaporizer - oxygen cylinders

2)External compression air separation plants:
Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders

The main technical specifications of internal compression

Model contents		KZON- 50/50	KZON- 80/80	KZON- 100/100	KDON- 180-20	KDON- 300-50	KDON- 350-80	KDON- 500-150	KDON- 800-200	KDON- 1000-300
Gox flow	Nm³/h	50	80	100	180	300	350	500	800	100
Gox purity	％(O2)	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6
Gan flow	Nm³/h	50	80	100	20	50	80	150	200	300
Gan purity	Ppm(O2)	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Operating pressure	Mpa	1.2	1.2	1.2	1	1	1	1	1	1
Start-up time	hour	≤12	≤12	≤12	≤10	≤10	≤8	≤8	≤8	≤8
Operating period	year	≥1	≥1	≥1	≥1	≥1	≥1	≥2	≥2	≥2

The main technical specifications of external compression

Model contents		KDON- 80/200	KDON- 180/500	KDON- 350/800	KDON- 350-900	KDON- 550-1000	KDON- 750-1500	KDON- 1000-2000	KDON- 1500-3000	KDON- 3000-3000
Gox flow	Nm³/h	80	180	350	350	550	750	1000	1500	3000
Gox purity	％(O2)	99.6	99.6	99.6	99.6	99.6	99.6	99.6	99.6	99.6
Gan flow	Nm³/h	200	500	800	900	1000	1500	2000	3000	3000
Gan purity	Ppm(O2)	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Operating pressure	Mpa	0.65	0.63	0.62	0.62	0.6	0.58	0.58	0.56	0.56
Start-up time	hour	≤12	≤14	≤16	≤16	≤16	≤18	≤18	≤20	≤20
Operating period	year	≥1	≥1	≥1	≥1	≥1	≥1	≥2	≥2	≥2
