2-32 Poles Electrical Terminal Block Pitch 8.25mm 300V 20A PBT Brass

Price Negotiable

Price: USD 0.046-0.088

MOQ: 500 Piece/Pieces

Delivery Time: 5-20 days

Brand: SCED

Product Description

2-32 Poles Barrier Terminal Block Pitch 8.25mm 300V 20A PBT Brass

Detailed product Description:

Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

1.PCB, Frequency Converters, Server Site

2.Switch, Power Supply, Electric Lighting

3.Industry Control, Automation, Rail Transportation

4.Communication, Electric Power, Security.

5.Industry Control, Automation

6.Medicine Equipment, Energy conservation, Elevator, etc.

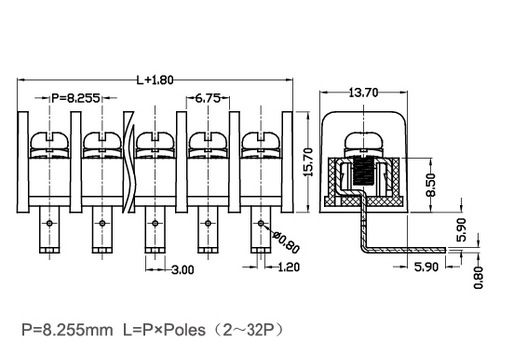

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20		300 / 10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 32	400 / 32	630 / 32
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	6-7
Screw / Torque / lbf.in	M 3 / 5-7
