Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage
Nickel Plated Power Distribution Terminal Block Female Parts PA66
Detailed product Description:
Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

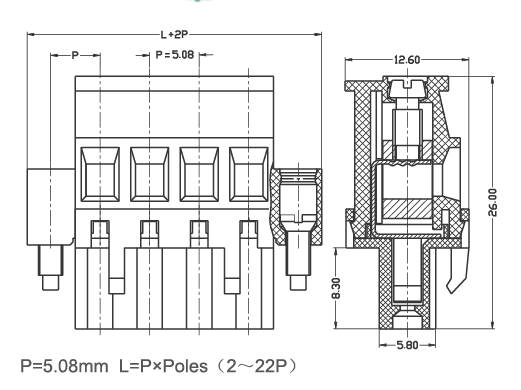

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/18 |
|
300/18 |
|
Wire Range AWG |
12-30 |
|
12-30 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
320 / 18 |
630 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Contactor / Plating |
Phosphor Bronze / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
