Impact Furniture Testing Machines , Mattress Fatigue Testing Equipment EN 1957

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 20 days after order confirmed

Brand: HAIDA

Product Description

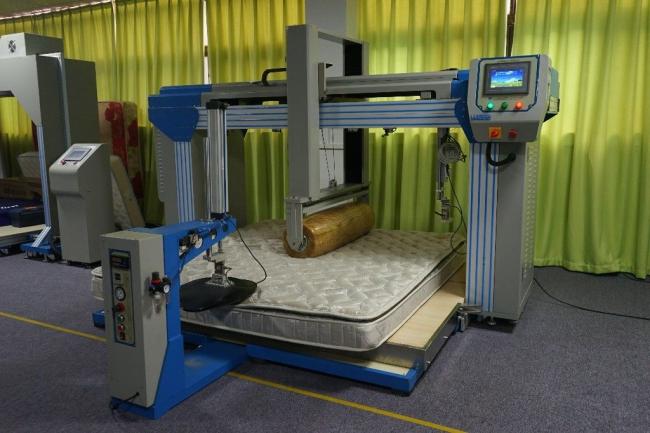

Impact Furniture Testing Machines , Mattress Fatigue Testing Equipment EN 1957

1. The usage

Cornell Mattress Durability Tester is designed and manufactured for testing and evaluating of Innerspring and Box spring mattres

2. Design criteria:

EN 1957

3. Test objectives:

Use specific block impact on the mattress over and over again, to assess their durability, and the fastness of mattress spring .

4. Mattress Durability Tester specification:

1.Imposed the pressure on mattress by a transducer, pressure range to 300KG
2. Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
3. Pusher travel speed adjustable, about 160 weeks times per minute
4. A computer program under pressure transmitter and location of the transmitter of the data, make a complete test report.
5. Suitable maximum specimen	2.3M X 2.5M
6. Display Accuracy	0.001kgf
7. Deformation precision	0.001mm
8. Impact height	0-300mm adjustable
9. Counter range	0-99999 times
10. Motor power	2KW DC

5. The main components:

· Motor	· Taiwan's Teco Motor with reducer of Italy.
· Speed adjustment	· Taiwan's "Ed Force" drive
· Guide bearing	· Import from Japan.
· Rack	· aluminum body and steel
· Control elements	· Imported.
