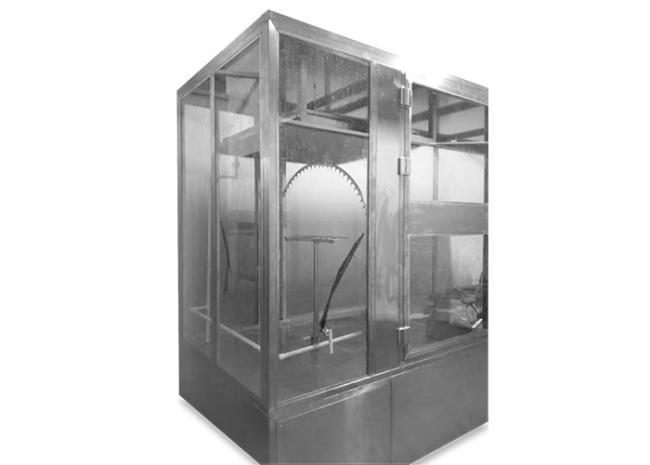

Electronic Environmental Test Chambers , Water Spray Testing Chamber
Electronic Environmental Test Chambers , Water Spray Spray Testing Chamber
Chamber structure:
The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
Large area of visible glass door, easy to observe the test specimens in the testing chamber
The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
With 270 degree swing pipe & 360 degrees whorl pole water jet device.
Adjustable speed samples stage.
Application:
Electronic Water Spray Salt Spray Environmental Testing Chambers is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.
Feature:
1, Studio equipped with lighting equipment
2. Rain time, interval time, rainfall intensity, regulate and control apart.
Control system:
(Germany) admiralty. Per stig moller programmable controller to complete the contrl of the whole system of time and sequence.Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.
The main technical parameters:
| Spray ring radius: | 375 and 500mm |
| Water pipe diameter: | φ16mm |
| Spray orifice diameter: | φ0.4mm |
| Aperture spacing: | 500mm |
| Swing pipe : | ±45°,±60°,±90°,±180°(theory number) |
| Test stands rotate speed : | 1r/min(can be no quarter speed adjustment) |
| Controller: | Import FM type inverter |
| Times controller: | Import programmable computer integrated time controller (Jin Zhong Mo le) |
| Water pressure control: | flow gauge |
| Observation plane: |
Large area of toughened glass door visualization Water supply system, booster pump, water storage Safety protection leakage, Short circuit, Motor overheating |
| Power supply: | 110V, 60HZ |
