Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal
Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal
Product Description
Salt spray corrosion testing chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Applicable Standards:
ASTM B117, ASTM G85, ASTM D1141-98
DIN EN ISO 9227 (NSS, ESS, CASS)
DIN 50942, DIN 53 167
ASTM B 117-73, ASTM B 287-74, ASTM B 368-68
DIN EN 60068-2-11
BS 1224, BS 2011, BS3900 F4, BS 3900 F12, BS 5466 Part 1, BS 5466 Parts 2+3
NFX 41002
AS 21331 Section 3.1
SIS 1841190
JIS Z 2371

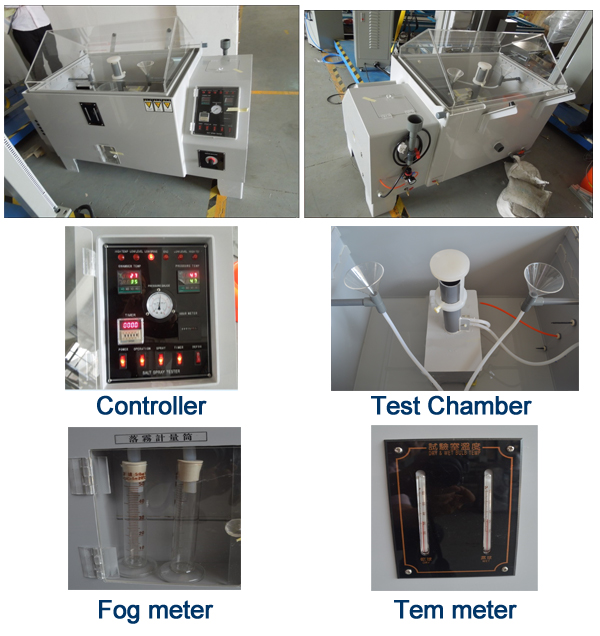

Features:
1. Provides USB Host for USB flash drive
2. Touch-screen operator control interface.
3. ‘Easy Open’ pneumatically operated canopy.
4. Dry seal gasket prevents wetting operator’s clothes, etc.
5. Low loading threshold for loading and unloading.
6. Large capacity floor standing salt solution reservoir.
7. Calibration certificate.
8. Canopy color choice.
9. Set of sample racks.
10.The TEMI880 touch screen can switch between Chinese and English.
Main Technical Parameter:
| Model | HD-E808-90 |
| Internal Size (W*D*H) | 900*600*500mm |
| External Size (W*D*H) | 1410*880*1280mm |
| Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
| Sample tray |
Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | Air pump (provided by buyer) |
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
